MULTILYZER® STx Starter Set (O2, CO/H2-compensated, Draft, Diff. Pressure) (SYSTRONIK)

Professional and robust set for industrial combustion, emission and process monitoring.

Description

  • Flue gas analysis for all liquid, gaseous and solid fuels
  • Latest ECOx sensor technology with 5 years guarantee for O2 and CO cells
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks
  • All-in-one: Flue gas analysis, (differential) pressure measurement, (differential) temperature measurement and air flow measurement

The MULTILYZER® STx Starter Set perform accurate measurements of O2, CO/H2, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.

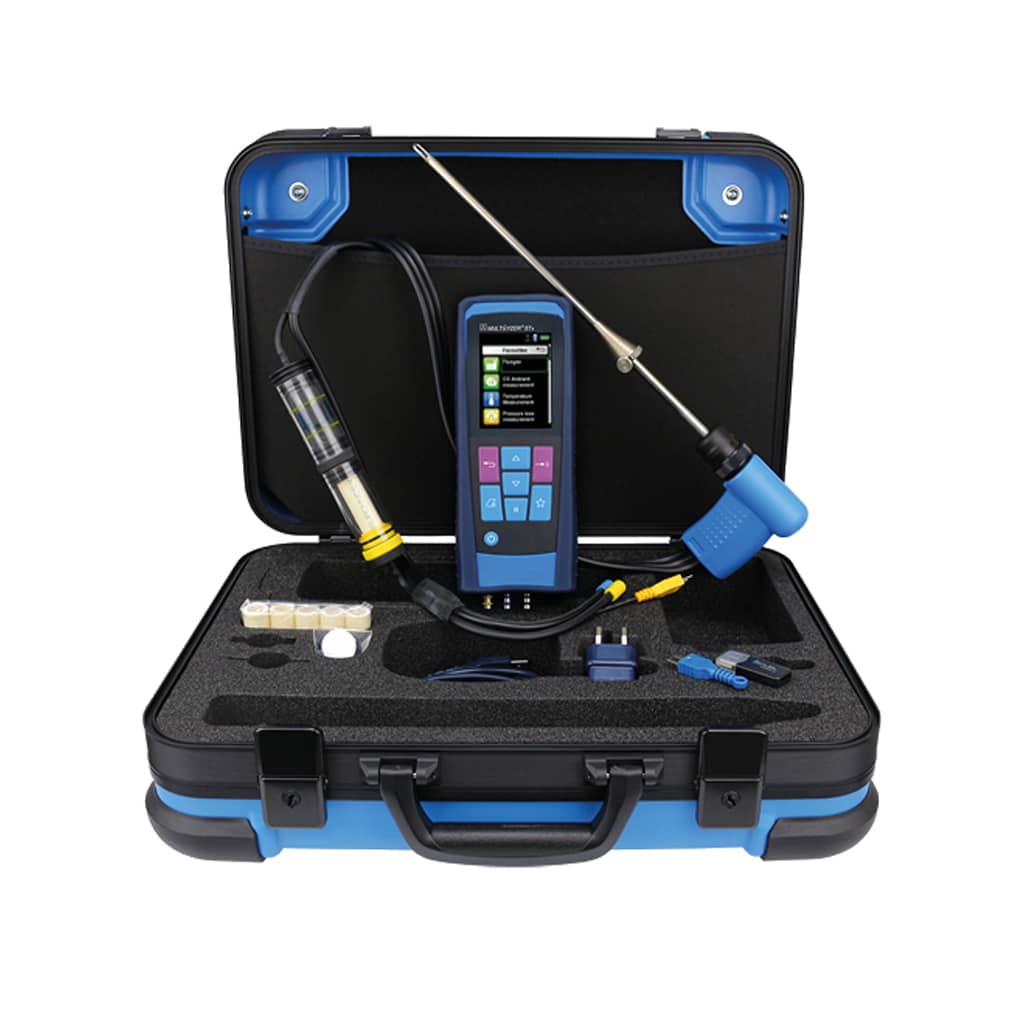

Scope of delivery
M04729210 MULTILYZER® STx (O2E, CO, P-D7, BLE)
511010 Option: Datenlogger
510921 Basic handle with draft, 2.4 m
523229 Interchangeable probe 300 mm
500192 Condensate filter cartridge
523493 Power supply unit
523506 Charging cable 1 m USB to USB-Mini
521844 Air sensor
500208 Filter set
511035 microSD card 4GB with card reader
523503 Case
O2 (oxygen)
Measuring range 0 to 21.0 vol.-%
Accuracy ±0.2 vol.-% RDG
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
CO (carbon monoxide) with H2-compensation
Measuring range 0 to 10,000 ppm
Accuracy ±5 ppm (< 50 ppm)
±5 % RDG (> 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
CO2 (carbon dioxide) calculated
Measuring range 0 to CO2 max. (depending on fuel)
Accuracy ±0.2 vol.-%
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
Flue gas temperature
Measuring range 0 to 1,150 °C
Accuracy ±1 °C + 1 digit (< 300 °C)
±1 % RDG (> 300 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Ambient air temperature
Measuring range -20 to 200 °C
Accuracy ±3 °C + 1 digit (-20 to 0 °C)
±1 °C + 1 digit (0.1 to 200 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Draft/differential pressure
Measuring range ±70 hPa (draft)
±150 hPa (diff. pressure)
Accuracy ±0.02 hPa (< 2.00 hPa)
±1 % RDG (> 2.00 hPa)
Resolution 0.01 hPa (< 20 hPa)
0.1 hPa (> 20 hPa)
Max. overload 1350 hPa
Response delay (t90) < 10 seconds
Pitot
Measuring range 0.5 to 70 m/s
Accuracy ±0.8 m/s
Resolution 0.1 m/s
Response delay (t90) < 20 seconds
Barometric pressure
Measuring range 500 to 1.150 hPa
Accuracy ±10 hPa
Resolution 1 hPa
Response delay (t90) < 60 seconds
Option: CO2 (carbon dioxide)
Measuring range 0 to 20 vol.-%
Accuracy ±1 vol.-%
Resolution 0.1 vol.-%
Response delay (t90) < 60 seconds
Option: NO (nitrogen oxide)
Measuring range 0 to 5,000 ppm
Accuracy ±5 ppm (< 50 ppm)
±5 % RDG ( > 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
Option: NO2 (nitrogen dioxide)
Measuring range 0 to 500 ppm
Accuracy ±10 ppm (< 50 ppm)
±10 % RDG (> 50 ppm)
± 5 ppm (< 100 ppm)1)
± 5 % RDG (> 100 ppm)1)
Resolution 0.1 ppm
Response delay (t90) < 60 seconds / < 180 seconds1)
Option: SO2 (sulfur dioxide)
Measuring range 0 to 5,000 ppm
Accuracy ±10 ppm (< 200 ppm)
±5 % RDG (> 200 ppm)
±5 ppm (< 200 ppm)1)
±5 % RDG (> 200 ppm)1)
Resolution 1 ppm
Response delay (t90) < 60 seconds / < 180 seconds1)
Option: COhigh (carbon monoxide)
Measuring range 0 to 4.0 vol.-% (= 40,000 ppm)
Accuracy ±10 ppm
±5 % RDG
Resolution 0.001 vol.-%
Response delay (t90) < 60 seconds
Option: NOlow (nitrogen oxide)
Measuring range 0 to 300 ppm
Accuracy ±2 ppm (< 40 ppm)
±10 % RDG (> 40 ppm)
Resolution 0.1 ppm
Response delay (t90) < 60 seconds
Option: SO2x (sulfur dioxide)
Measuring range 0 to 2,000 ppm
Accuracy ±5 ppm (< 200 ppm)
±10 % RDG (> 200 ppm)
Resolution 0.1 ppm
Response delay (t90) < 60 seconds / < 180 seconds1)

1) with extended flue gas treatment (e.g. MAXISYSTEM ST)
