MULTILYZER® STx Industrial Set (O2, CO/H2-compensated, NO, SO2, Draft, Diff. Pressure) (SYSTRONIK)

Professional and robust set for industrial combustion, emission and process monitoring including NOx and SO2 measurement.

Description

  • Flue gas analysis for all liquid, gaseous and solid fuels
  • Latest ECOx sensor technology with 5 years guarantee for O2 and CO cells
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks
  • All-in-one: Flue gas analysis, (differential) pressure measurement, (differential) temperature measurement and air flow measurement.

The MULTILYZER® STx Industrial Set perform accurate measurements of O2, CO/H2, NO, SO2, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point, NOx and CO2.

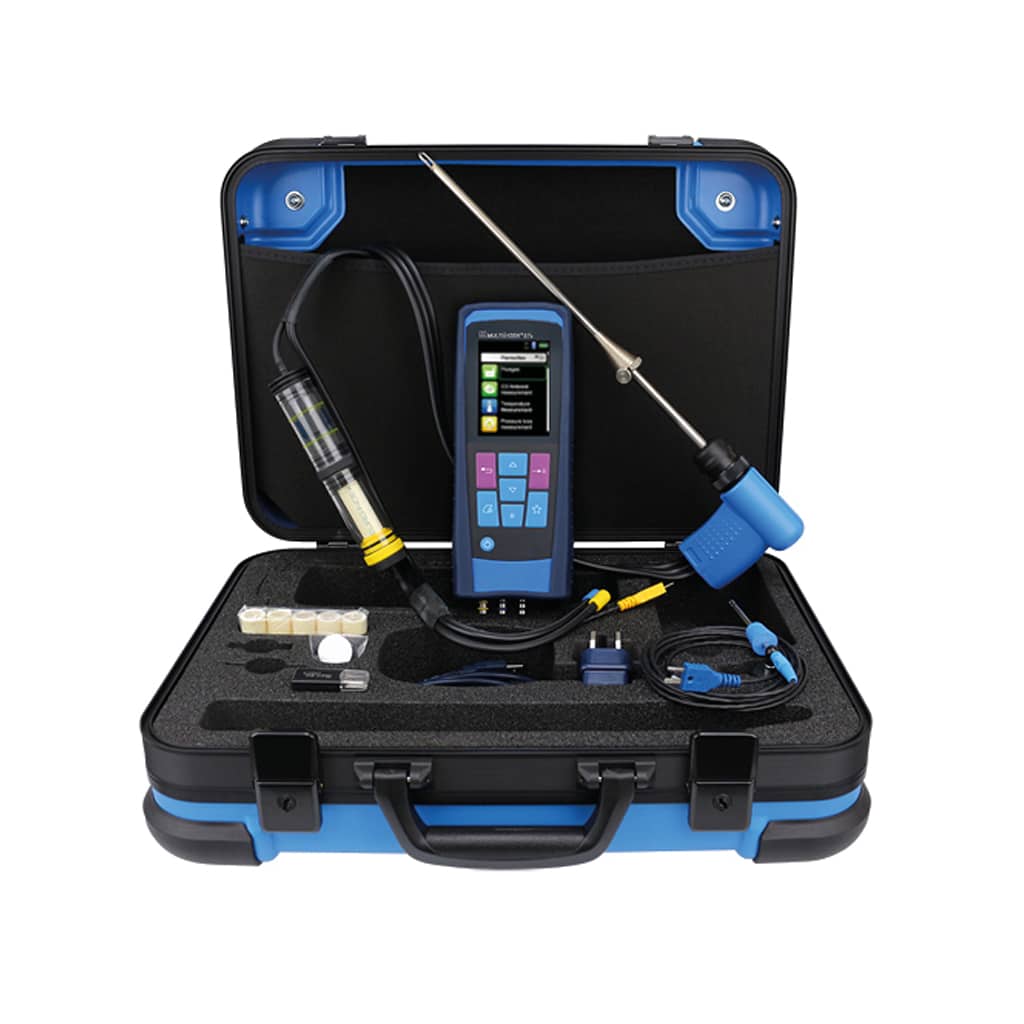

Scope of delivery
M04744210 MULTILYZER® STx (O2, CO, NO, SO2, P-D7, BLE)
511010 Option: Datenlogger
510921 Basic handle with draft, 2.4 m
523229 Interchangeable Probe 300 mm
523493 Power supply unit
523506 Charging cable
500141.1 Air sensor 80 mm
500208 Filter set
511035 microSD card 4GB with card reader
523503 Case
O2 (oxygen)
Measuring range 0 to 21.0 vol.-%
Accuracy ±0.2 vol.-% RDG
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
CO (carbon monoxide) with H2-compensation
Measuring range 0 to 10,000 ppm
Accuracy ±5 ppm (< 50 ppm)
±5 % RDG (> 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
CO2 (carbon dioxide) calculated
Measuring range 0 to CO2 max. (depending on fuel)
Accuracy ±0.2 vol.-%
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
Flue gas temperature
Measuring range 0 to 1,150 °C
Accuracy ±1 °C + 1 digit (< 300 °C)
±1 % RDG (> 300 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Ambient air temperature
Measuring range -20 to 200 °C
Accuracy ±3 °C + 1 digit (-20 to 0 °C)
±1 °C + 1 digit (0.1 to 200 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Draft/differential pressure
Measuring range ±70 hPa (draft)
±150 hPa (diff. pressure)
Accuracy ±0.02 hPa (< 2.00 hPa)
±1 % RDG (> 2.00 hPa)
Resolution 0.01 hPa (< 20 hPa)
0.1 hPa (> 20 hPa)
Max. overload 1350 hPa
Response delay (t90) < 10 seconds
Pitot
Measuring range 0.5 to 70 m/s
Accuracy ±0.8 m/s
Resolution 0.1 m/s
Response delay (t90) < 20 seconds
Barometric pressure
Measuring range 500 to 1.150 hPa
Accuracy ±10 hPa
Resolution 1 hPa
Response delay (t90) < 60 seconds
Option: CO2 (carbon dioxide)
Measuring range 0 to 20 vol.-%
Accuracy ±1 vol.-%
Resolution 0.1 vol.-%
Response delay (t90) < 60 seconds
NO (nitrogen oxide)
Measuring range 0 to 5,000 ppm
Accuracy ±5 ppm (< 50 ppm)
±5 % RDG ( > 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
Option: NO2 (nitrogen dioxide)
Measuring range 0 to 500 ppm
Accuracy ±10 ppm (< 50 ppm)
±10 % RDG (> 50 ppm)
± 5 ppm (< 100 ppm)1)
± 5 % RDG (> 100 ppm)1)
Resolution 0.1 ppm
Response delay (t90) < 60 seconds / < 180 seconds1)
SO2 (sulfur dioxide)
Measuring range 0 to 5,000 ppm
Accuracy ±10 ppm (< 200 ppm)
±5 % RDG (> 200 ppm)
±5 ppm (< 200 ppm)1)
±5 % RDG (> 200 ppm)1)
Resolution 1 ppm
Response delay (t90) < 60 seconds / < 180 seconds1)
Option: COhigh (carbon monoxide)
Measuring range 0 to 4.0 vol.-% (= 40,000 ppm)
Accuracy ±10 ppm
±5 % RDG
Resolution 0.001 vol.-%
Response delay (t90) < 60 seconds
Option: NOlow (nitrogen oxide)
Measuring range 0 to 300 ppm
Accuracy ±2 ppm (< 40 ppm)
±10 % RDG (> 40 ppm)
Resolution 0.1 ppm
Response delay (t90) < 60 seconds
Option: SO2x (sulfur dioxide)
Measuring range 0 to 2,000 ppm
Accuracy ±5 ppm (< 200 ppm)
±10 % RDG (> 200 ppm)
Resolution 0.1 ppm
Response delay (t90) < 60 seconds / < 180 seconds1)

1) with extended flue gas treatment (e.g. MAXISYSTEM ST)
