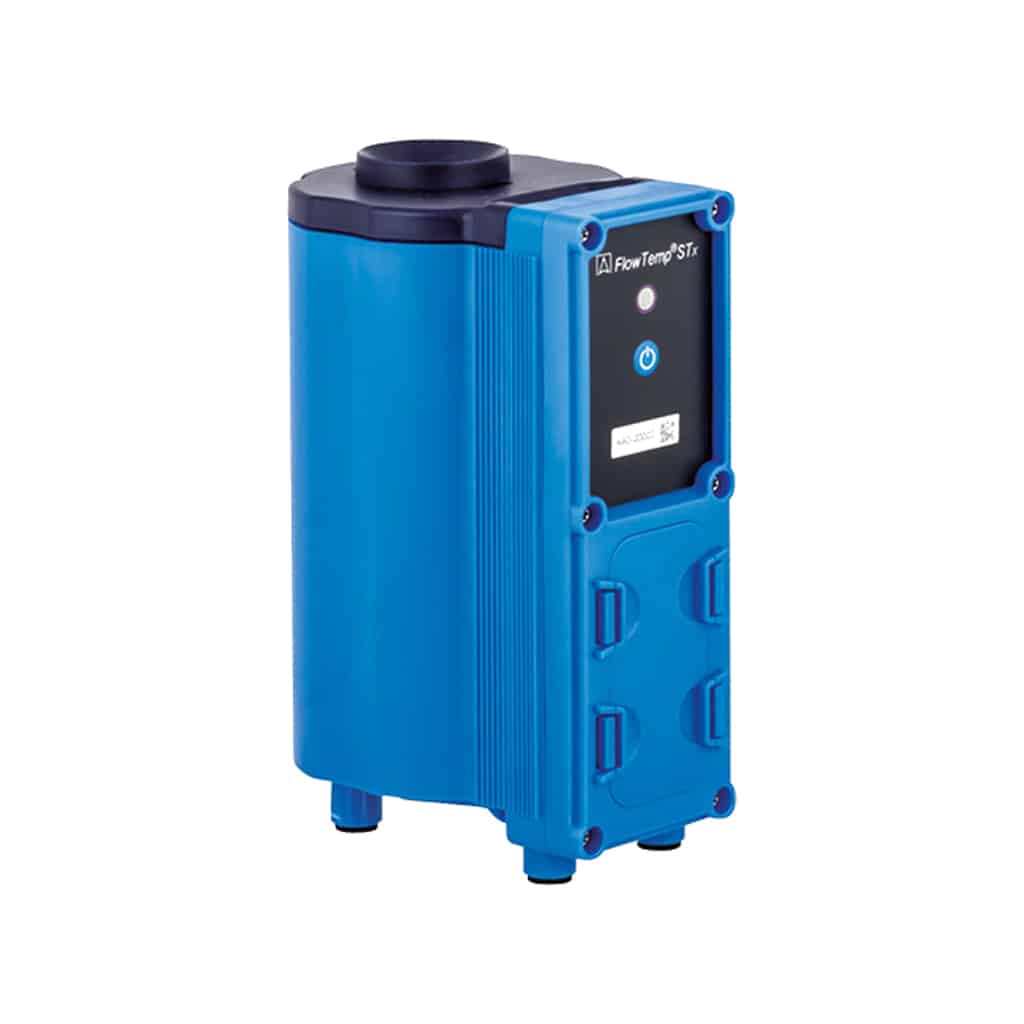

FlowTemp® STx (SYSTRONIK)

The TÜV tested FlowTemp® STx is a intelligent and compact measuring device for determining the volume flow and water temperature at water taps.

Description

  • Thermal disinfection to prevent legionella and risk analysis of drinking water systems
  • Volume flow and temperature measurement in a single step
  • Convenient display and documentation (PDF report) of measured values in the EuroSoft® live app
  • Immediate measurement start thanks to the automatic Bluetooth® connection

Monitoring, safety and environmental protection are just some of the reasons why flow and temperature measurement at water systems is becoming increasingly important. The FlowTemp® STx is a simple and compact measuring device for determining volume flow and water temperature at water taps. The sophisticated sensor system handles the measurements simultaneously, quickly and precisely.

Thermal disinfection to prevent legionella and risk analysis of drinking water systems are just a few examples of measurement applications. The compact design of the FlowTemp® STx allows measurements even on low water fittings.

General data
Dimensions H x W x D 158 x 71 x 97 mm
Weight approx. 370 g
Material housing Plastic (PC + ABS)
Operation temperature 5 to 80 °C
Storage temperature -20 to 80 °C
Data interface Bluetooth®
Power supply 2x AAA batteries
Operating time up to 50 hours
Ingress protection rating IP65 and IP67 (standard DIN EN IEC 60529)
Technical data
Temperature Volume flow
Measuring range 5 to 80 °C 1.5 to 17.5 l/min
Accuracy ±1 °C or ±3 % RDG ±0.3 l/min or ±5 % RDG
Resolution 0.1 °C 0.1 l/min
Response delay (t90) < 5 seconds < 10 seconds
Sensor PT1000 Capacitive sensor
