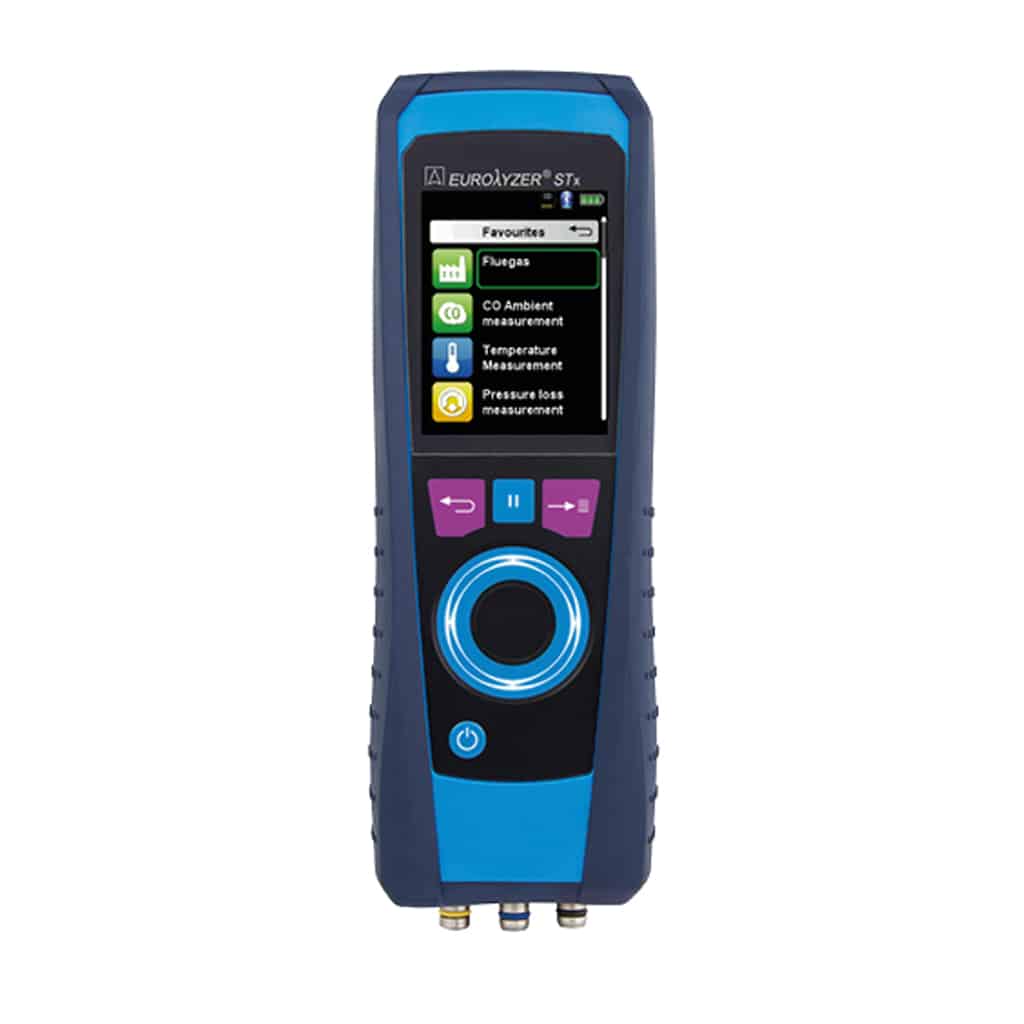

EUROLYZER® STx (SYSTRONIK)

  • Flue gas analyzer set for oil and gas fuels for setting up heating systems.
  • The world’s smallest, fully-featured HVAC all-rounder with TFT color display
  • Set for small and medium-sized oil and gas fired systems
  • New sensor technology with an extremely short response time
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect App

Description

The BLUELYZER® ST Starter Set perform accurate measurements of O2, CO and temperatures as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.

Scope of delivery
M04438016 BLUELYZER ST (O2, CO, BLE)
500265.5 Flue gas probe 170 mm, with Polyurethan
500192 Condensate filter cartridge
523493 Power supply unit
523506 Charging cable
521844 Air sensor
500214 Filter set
511001 Case
O2 (oxygen)
Measuring range 0 to 21.0 vol.-%
Accuracy ±0.2 vol.-% RDG
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
CO (carbon monoxide)
Measuring range 0 to 2,000 ppm (max. 6,000 ppm)
Accuracy ±5 ppm (< 50 ppm)
±5% RDG (> 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
Flue gas temperature
Measuring range 0 to 1,150 °C
Accuracy ±1 °C + 1 digit (< 300 °C)
±1 % RDG (> 300 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Ambient air temperature
Measuring range -20 to 200 °C
Accuracy ±3 °C + 1 digit (< 0 °C)
±1 °C + 1 digit (> 0 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Starter Set
Pro Set
Part no.
P00007
P00008
O2, CO
(differential) temperature
Draft/pressure
Aluminium carrying case
Flue gas probe Ø 8 - 170 mm / 1.8 m
gas / temperature
Flue gas probe Ø 8 - 170 mm / 1.8 m
gas / pressure / temperature
Condensate cartridge
5x filter discs and
5x particle filter tabs
Ambient air thermocouple
Mains unit with USB cable
