EUROLYZER® STx Starter Set (O2, CO/H2-compensated, Draft) (SYSTRONIK)

Robust and high quality flue gas analyzer set to setup oil, gas and pellets-fired heating systems.

Description

  • The scroll wheel allows a comfortable one-hand navigation through the intuitive measurement menus
  • Latest ECOx sensor technology with long service life, optimized calibration phase and short response time
  • Accurate H2-compensated CO cell with measuring range up to 10,000 ppm
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks

The EUROLYZER® STx Starter Set perform accurate measurements of O2, CO/H2, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.

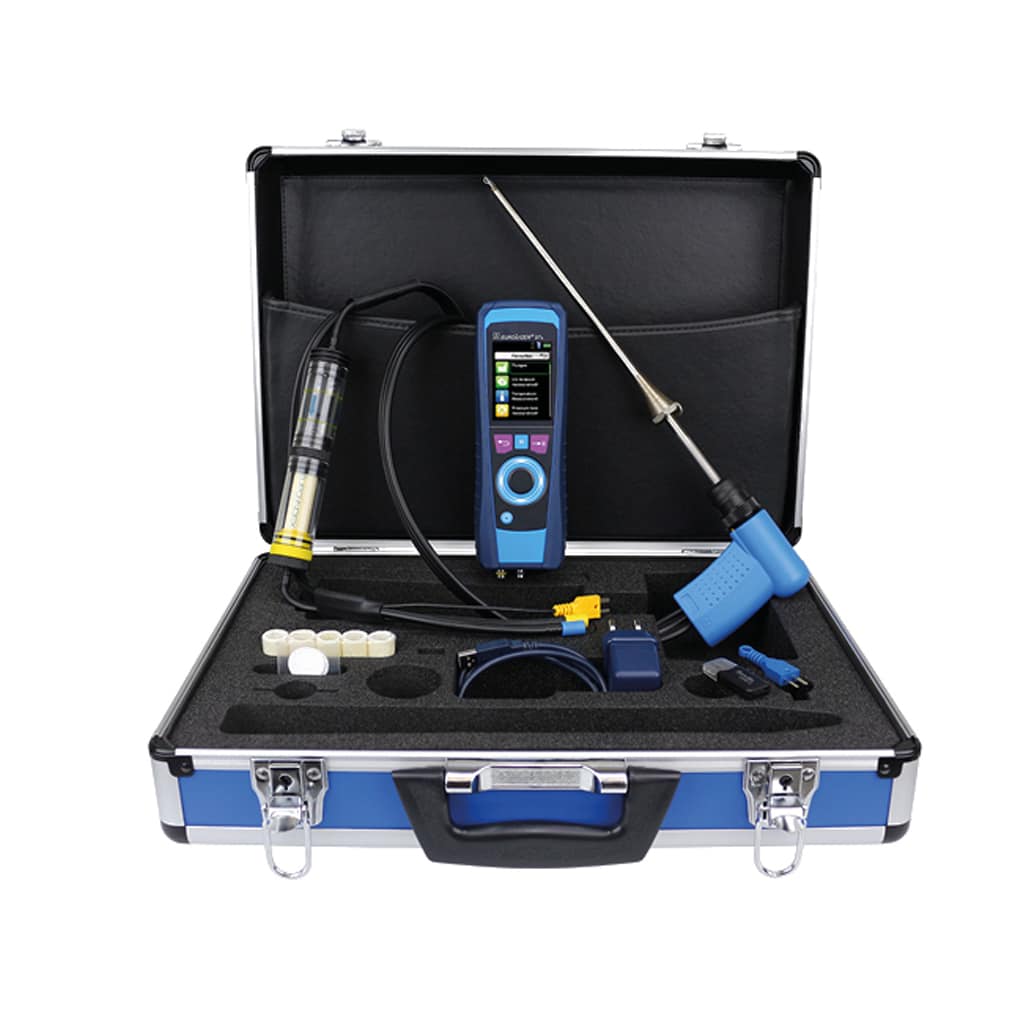

Scope of delivery
M04629110 EUROLYZER® STx (O2, CO, FZ-D7, BLE)
510921 Basic handle with draft, 2.4 m
523229 Interchangeable probe 300mm
523493 Power supply unit
523506 Charging cable
521844 Air sensor
500208 Filter set
511035 microSD card 4GB with card reader
500541 Case
O2 (oxygen)
Measuring range 0 to 21.0 vol.-%
Accuracy ±0.2 vol.-% RDG
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
CO (carbon monoxide) with H2-compensation
Measuring range 0 to 4,000 ppm (max. 10,000)
Accuracy ±5 ppm (< 50 ppm)
±5 % RDG (> 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
CO2 (carbon dioxide)
Measuring range 0 to CO2 max. (depending on fuel)
Accuracy ±0.2 vol.-%
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
Flue gas temperature
Measuring range 0 to 1,150 °C
Accuracy ±1 °C + 1 digit (< 300 °C)
±1 % RDG (> 300 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Ambient air temperature
Measuring range -20 to 200 °C
Accuracy ±3 °C + 1 digit (-20 to 0 °C)
±1 °C + 1 digit (0 to 200 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Barometric pressure
Measuring range 500 to 1,150 hPa
Accuracy ±10 hPa
Resolution 1 hPa
Response delay (t90) < 60 seconds
Option: Draft/differential pressure
Measuring range ±70 hPa (draft)
±150 hPa (diff. pressure)
Accuracy ±0.02 hPa (< 2.00 hPa)
±1 % RDG (> 2.00 hPa)
Resolution 0.01 hPa (< 20 hPa)
0.1 hPa (> 20 hPa)
Max. overload 1350 hPa
Response delay (t90) < 10 seconds
Option: Pitot
Measuring range 0.5 to 70 m/s
Accuracy ±0.8 m/s
Resolution 0.1 m/s
Response delay (t90) < 20 seconds
Option: NO
Measuring range 0 to 2,000 ppm
Accuracy ±5 ppm (< 50 ppm)
±5% RDG (> 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
Starter set Pro set Starter set NOx Pro set NOx
Part no. P00010 P00011 P00012 P00014
O2, CO/H2 (differential) temperature
NO (NOx calculated)
Draft/pressure
Differential pressure
Aluminium carrying case
Hard shell carrying case
Flue gas probe Ø 8 - 290 mm / 1.8 m
gas / temperature
Probe handle 1.8 m with interchangeable probe Ø 8 - 300 mm
gas / pressure / temperature
Condensate cartridge
5x filter discs / 5x particle filter
Ambient air thermocouple
4 GB microSD card incl. USB 2.0 card reader
Pressure connection set
Mains unit with USB cable
