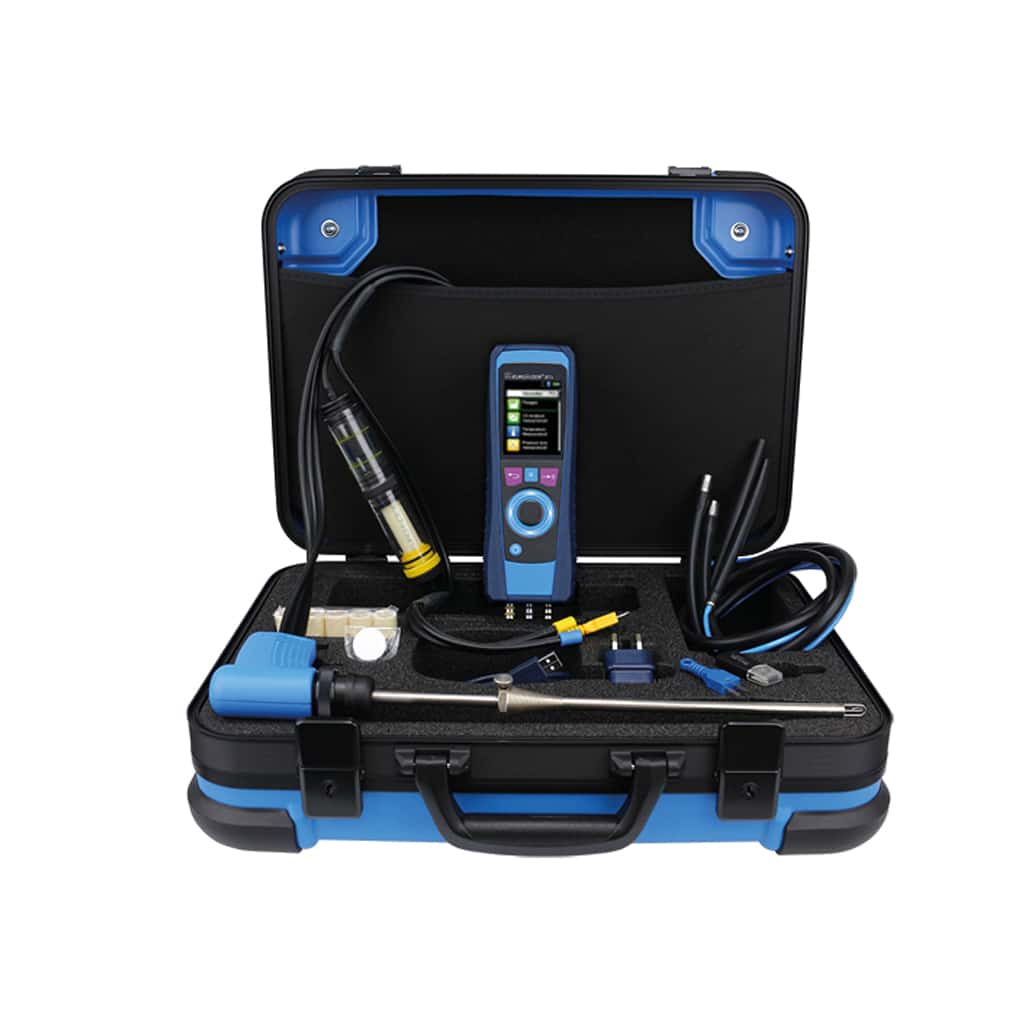

EUROLYZER® STx Pro Set NOX (O2, CO/H2-compensated, NO, Draft, Diff. Pressure) (SYSTRONIK)

Professional and robust flue gas analyzer set to service and inspect oil, gas and pellets-fired heating systems as well for NOx measurements (e.g. for CHPs).

Description

  • The scroll wheel allows a comfortable one-hand navigation through the intuitive measurement menus
  • Latest ECOx sensor technology with long service life, optimized calibration phase and short response time
  • Accurate H2-compensated CO cell with measuring range up to 10,000 ppm
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks

The EUROLYZER® STx Pro Set NOx perform accurate measurements of O2, CO/H2, NO, temperatures, pressure (draft) as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point, NOx and CO2.

Scope of delivery
M04630210 EUROLYZER® STx (O2, CO, NO, FZ-Diff-D7, BLE)
511010 Option: datalogger
510921 Basic handle with draft, 2.4 m
523229 Interchangeable Probe 300 mm
523493 Power supply unit
523506 Charging cable
521844 Air sensor
500237 Connection set for diff. pressure measurement
500208 Filter set
511035 microSD card 4GB with card reader
523503 Case
O2 (oxygen)
Measuring range 0 to 21.0 vol.-%
Accuracy ±0.2 vol.-% RDG
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
CO (carbon monoxide) with H2-compensation
Measuring range 0 to 4,000 ppm (max. 10,000)
Accuracy ±5 ppm (< 50 ppm)
±5 % RDG (> 50 ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
CO2 (carbon dioxide)
Measuring range 0 to CO2 max. (depending on fuel)
Accuracy ±0.2 vol.-%
Resolution 0.1 vol.-%
Response delay (t90) < 30 seconds
Flue gas temperature
Measuring range 0 to 1,150 °C
Accuracy ±1 °C + 1 digit (< 300 °C)
±1 % RDG (> 300 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Ambient air temperature
Measuring range -20 to 200 °C
Accuracy ±3 °C + 1 digit (-20 to 0 °C)
±1 °C + 1 digit (0 to 200 °C)
Resolution 0.1 °C
Response delay (t90) < 30 seconds
Barometric pressure
Measuring range 500 to 1,150 hPa
Accuracy ±10 hPa
Resolution 1 hPa
Response delay (t90) < 60 seconds
Draft/differential pressure
Measuring range ±70 hPa (draft)
±150 hPa (diff. pressure)
Accuracy ±0.02 hPa (< 2.00 hPa)
±1 % RDG (> 2.00 hPa)
Resolution 0.01 hPa (< 20 hPa)
0.1 hPa (> 20 hPa)
Max. overload 1350 hPa
Response delay (t90) < 10 seconds
Pitot
Measuring range 0.5 to 70 m/s
Accuracy ±0.8 m/s
Resolution 0.1 m/s
Response delay (t90) < 20 seconds
NO
Measuring range 0 to 2,000 ppm
Accuracy ±5 ppm (< 50 ppm)
±5% RDG (> 50ppm)
Resolution 1 ppm
Response delay (t90) < 60 seconds
Starter set Pro set Starter set NOx Pro set NOx
Part no. P00010 P00011 P00012 P00014
O2, CO/H2 (differential) temperature
NO (NOx calculated)
Draft/pressure
Differential pressure
Aluminum carrying case
Hard shell carrying case
Flue gas probe Ø 8 - 290 mm / 1.8 m
gas / temperature
Probe handle 1.8 m with interchangeable probe Ø 8 - 300 mm (gas / pressure / temperature)
Condensate cartridge
5x filter discs / 5x particle filter
Ambient air thermocouple
4 GB microSD card incl. USB 2.0 card reader
Pressure connection set
Mains unit with USB cable
