Description
- The world’s smallest, fully-featured HVAC all-rounder with TFT color display
- Set for small and medium-sized oil and gas fired systems
- New sensor technology with an extremely short response time
- Features Bluetooth® and QR code data transmission to the EuroSoft connect App

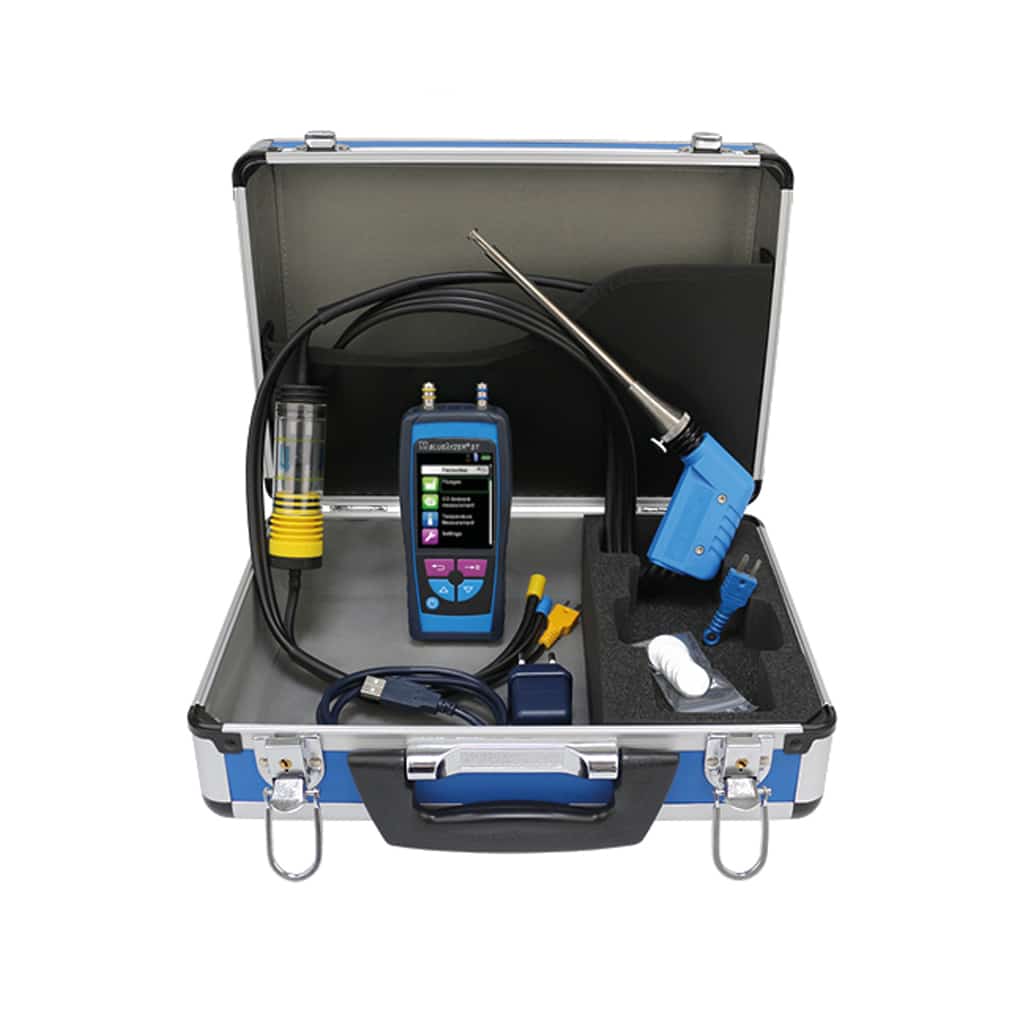

The BLUELYZER® ST Pro Set perform accurate measurements of O2, CO, pressure (draft) and temperatures as well as precise calculation of various parameters such as lambda, combustion efficiency (Eta), flue gas loss (qA), dew point and CO2.
| Scope of delivery | |
| M04438116 | BLUELYZER ST (O2, CO, Draft, BLE) |
| 500268.5 | Flue gas probe 170mm, Draft with Polyurethan |
| 500192 | Condensate filter cartridge |
| 523493 | Power supply unit |
| 523506 | Charging cable |
| 521844 | Air sensor |
| 500214 | Filter set |
| 511001 | Case |
| O2 (oxygen) | |
| Measuring range | 0 to 21.0 vol.-% |
| Accuracy | ±0.2 vol.-% RDG |
| Resolution | 0.1 vol.-% |
| Response delay (t90) | < 30 seconds |
| CO (carbon monoxide) | |
| Measuring range | 0 to 2,000 ppm (max. 6,000 ppm) |
| Accuracy | ±5 ppm (< 50 ppm) |
| ±5% RDG (> 50 ppm) | |
| Resolution | 1 ppm |
| Response delay (t90) | < 60 seconds |
| Flue gas temperature | |
| Measuring range | 0 to 1,150 °C |
| Accuracy | ±1 °C + 1 digit (< 300 °C) |
| ±1 % RDG (> 300 °C) | |
| Resolution | 0.1 °C |
| Response delay (t90) | < 30 seconds |
| Ambient air temperature | |
| Measuring range | -20 to 200 °C |
| Accuracy | ±3 °C + 1 digit (< 0 °C) |
| ±1 °C + 1 digit (> 0 °C) | |
| Resolution | 0.1 °C |
| Response delay (t90) | < 30 seconds |
| Draft/pressure | |
| Measuring range | ±70 hPa (draft) |
| ±150 hPa (pressure) | |
| Accuracy | ±0.02 hPa (< 2.00 hPa) |
| ±1 % RDG (> 2.00 hPa) | |
| Resolution | 0.01 hPa (< 20 hPa) |
| 0.1 hPa (> 20 hPa) | |
| Max. overload | 1350 hPa |
| Response delay (t90) | < 10 seconds |
|
Starter Set
|
Pro Set
|
|
| Part no. |
P00007
|
P00008
|
| O2, CO (differential) temperature |
✔
|
✔
|
| Draft/pressure |
✔
|
|
| Aluminium carrying case |
✔
|
✔
|
| Flue gas probe Ø 8 - 170 mm / 1.8 m gas / temperature |
✔
|
|
| Flue gas probe Ø 8 - 170 mm / 1.8 m gas / pressure / temperature |
✔
|
|
| Condensate cartridge |
✔
|
✔
|
| 5x filter discs and 5x particle filter tabs |
✔
|
✔
|
| Ambient air thermocouple |
✔
|
✔
|
| Mains unit with USB cable |
✔
|
✔
|
