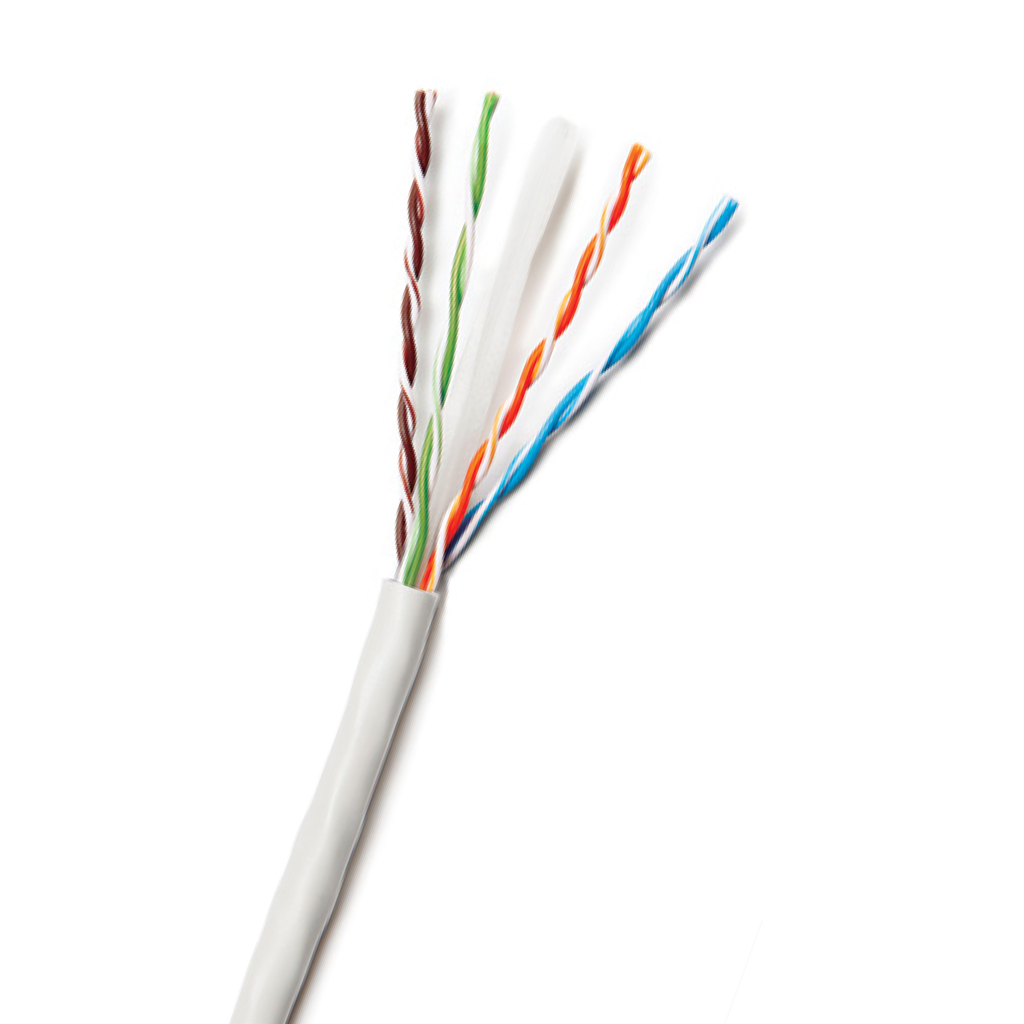

CAT 6 – U/UTP 100 Ohm Indoor Flexible LAN Cables

4 pair U/UTP flexible cables
Category: Tags: , , , ,

Description

Frequency range: 1-250 MHz
Conductor: 24 AWG 7×0.20mm stranded bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Shield: None
Jacket: PVC or LS0H

Standard & EU Directives Conformance

• Category 6 work area cable according to IEC 61156-6
• Category 6 cord cable according to ANSI/TIA-568.2-D
• 250MHz work area cable according to EN 50288-6-2
• IEC 60332-1 flame test
• IEC 60754 & IEC 61034 (LS0H cables)
• EU Directive 2011/65/EU (RoHS-2)

Mechanical & Electrical Properties

Pulling force: 50 N/mm2 max.
Short term bend radius: 8xOD mm
Long term bend radius: 4xOD mm
Operating temperature: -20 to +60C
Installation temperature: 0 to +50C
DC resistance: 93 Ohm/Km max.
Capacitance: 56 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 69% nom.
