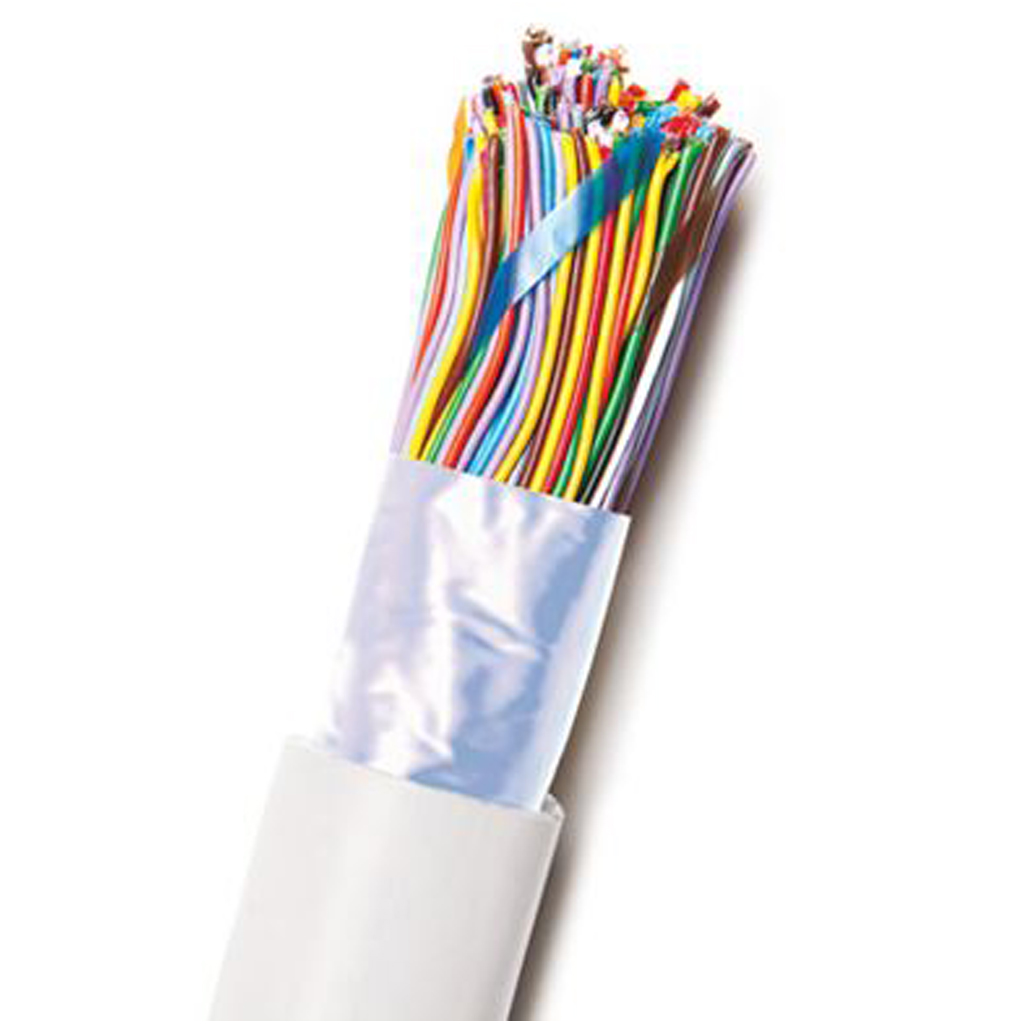

CAT 3 – F/UTP 100 Ohm LAN Cable

4-300 pair F/UTP cables

Category:

Description

Frequency range: 1-16 MHz
Conductor: 24 AWG Solid bare copper
Insulation: PO
Color code: Modified ANSI/ICEA S-80-576
Shield: Overall aluminum foil
Drain wire: Single tin-coated copper solid wire
Jacket: PVC or LS0H

Standard & EU Directives Conformance

  • Category 3 cable according to IEC 61156-4
  • Category 3 cable according to ANSI/TIA-568.2-D
  • IEC 60332-1, IEC 60332-3-24 or IEC 60332-3-25 flame tests
  • IEC 60754 & IEC 61034 (LS0H cables)
  • EU Directive 2011/65/EU (RoHS-2)
  • Mechanical Properties

Pulling force: 50 N/mm2 max Short term bend radius: 8xOD mm
Long term bend radius: 4xOD mm
Operating temperature: -20 to +60 C
Installation temperature: 0 to +50 C
DC resistance: 93 Ohm/Km max
Capacitance: 66 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max
Voltage of propagation (NVP): 69% nom
