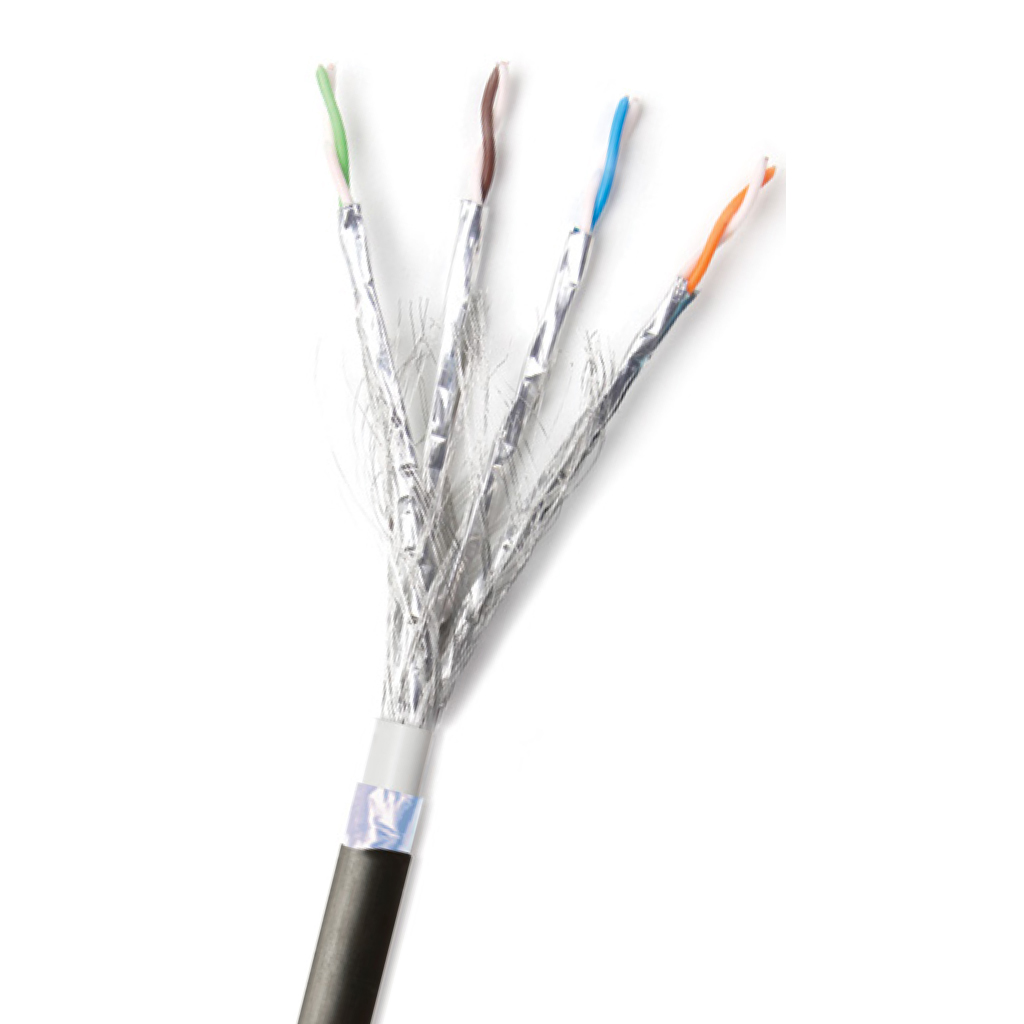

CAT 6 – S/FTP 100 Ohm Horizontal Outdoor DJ MB LAN Cables (AT&T)

4 pair S/FTP outdoor double-jacketed cables with aluminum moisture-barrier (AT&T)


Frequency range: 1-250 MHz
Conductor: 23 AWG Solid bare copper
Insulation: PO
Color code: Modified ANSI/TIA-568.2-D (Solid colors)
Longitudinal water: None blocking
Individual pair shield: Aluminum foil
Overall shield: Tin-coated copper braid
Drain wire: None
Inner jacket: PVC or LS0H
Radial water blocking: 200µ Aluminum moisture-barrier (MB)
Outer jacket: UV resistant MDPE for outdoor use
Outer jacket color: Black

Standard & EU Directives Conformance

• Category 6 cable according to ANSI/TIA-568.2-D
• Category 6 cable according to IEC 61156-5
• 250 MHz cable according to EN 50288-5-1
• EU Directive 2011/65/EU (RoHS-2)

Mechanical & Electrical Properties

Pulling force: 50 N/mm2 max.
Dynamic bend radius: 50xOD mm min
Static bend radius: 25xOD mm min
Operating temperature: -25 to +60C
Installation temperature: 0 to +50C
DC resistance: 80 Ohm/Km max.
Capacitance: 56 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 78% nom.
