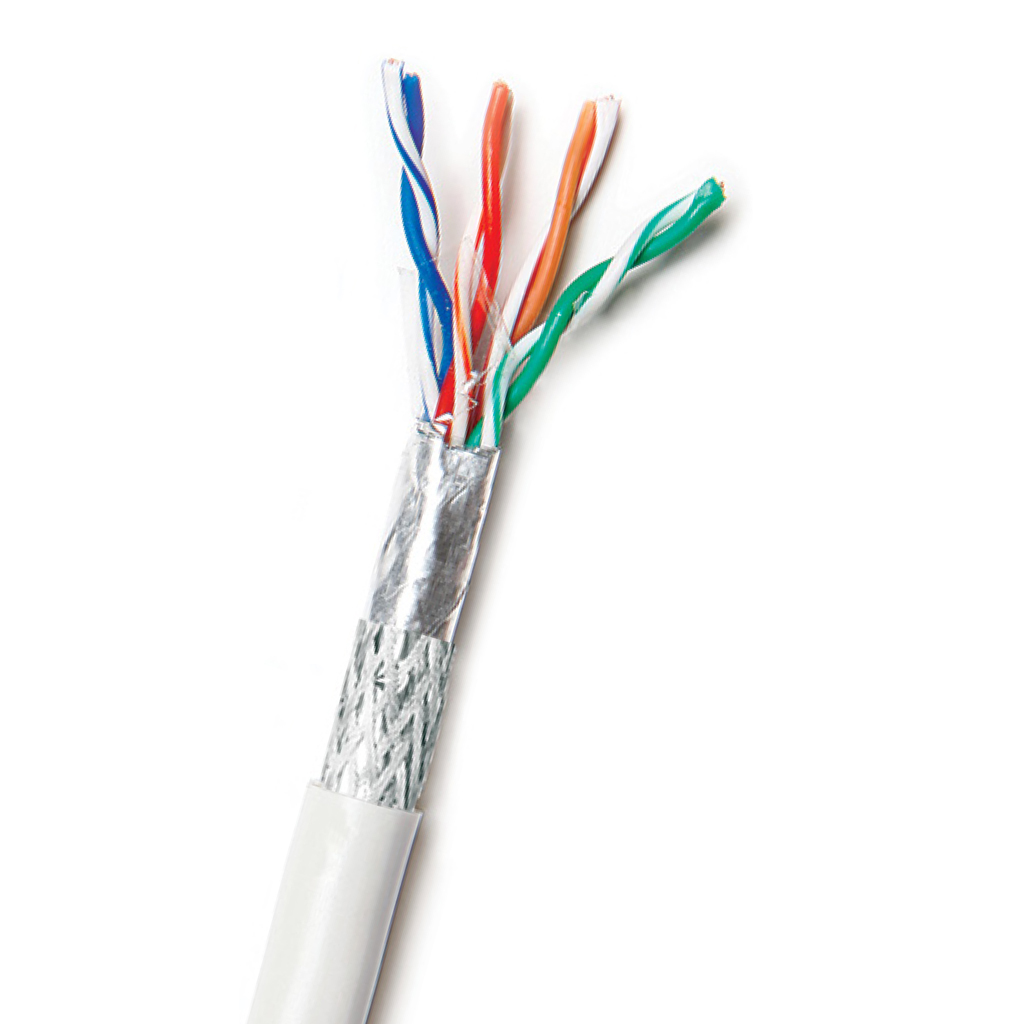

CAT 5e – SF/UTP 100 Ohm LAN Cable

4 & 8 pair SF/UTP cables
Category: Tags: , ,

Description

Frequency range: 1-100 MHz
Conductor: 24 AWG Solid bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Overall inner shield: Overall aluminum foil
Overall outer shield: Tin-coated copper braid
Drain wire: None
Jacket: PVC or LS0H

Standard & EU Directives Conformance

• Category 5e cable according to IEC 61156-5
• Category 5e cable according to ANSI/TIA-568.2-D
• 100MHz cable according to EN 50288-2-1
• IEC 60332-1, IEC 60332-3-24 or IEC 60332-3-25 flame tests
• IEC 60754 & IEC 61034 (LS0H cables)
• EU Directive 2011/65/EU (RoHS-2)

Mechanical & Electrical Properties

Pulling force: 50 N/mm2 max.
Short term bend radius: 8xOD mm
Long term bend radius: 4xOD mm
Operating temperature: -20 to +60C
Installation temperature: 0 to +50C
DC resistance: 93 Ohm/Km max.
Capacitance: 56 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 69% nom.
