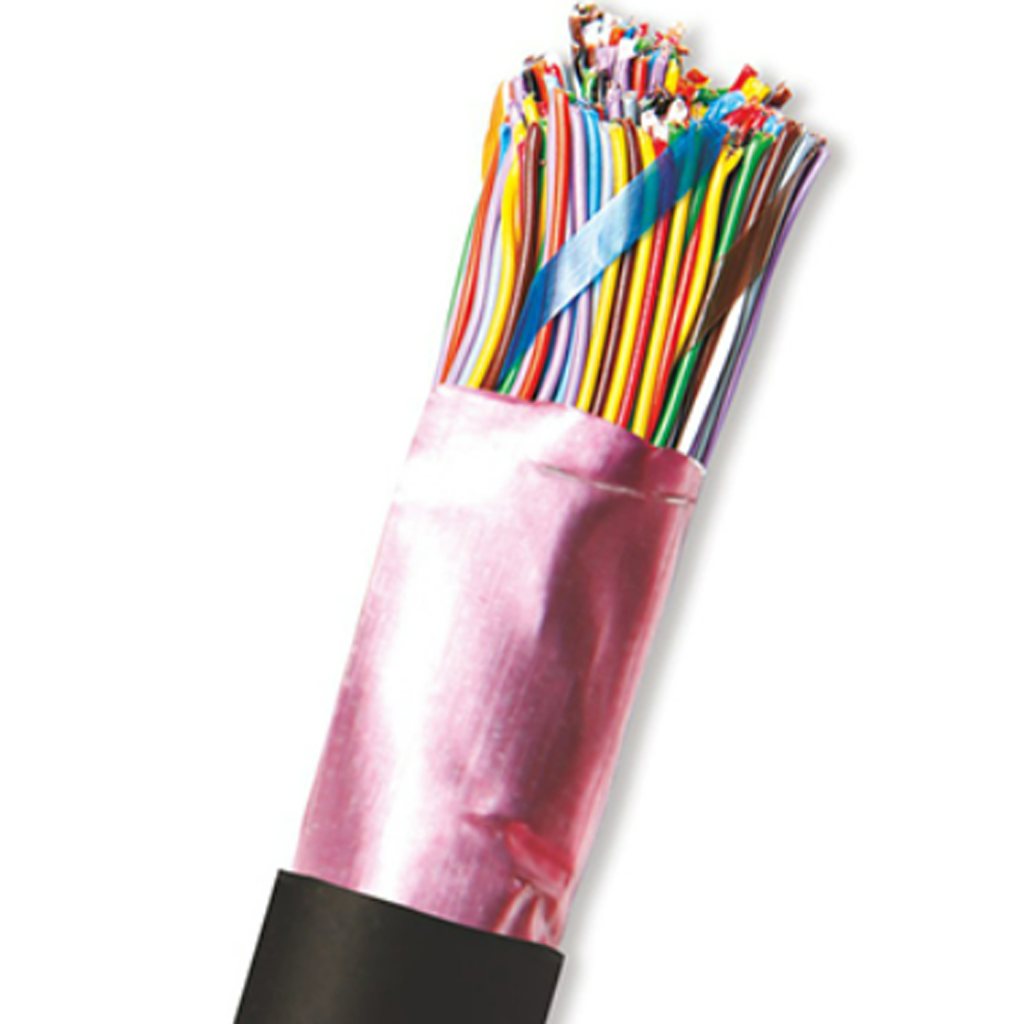

Description
Frequency range: 1-16 MHz
Conductor: 24 AWG Solid bare copper
Insulation: PO
Water blocking: Petroleum jelly
Color code: Modified ANSI/ICEA S-80-576
Shield: Overall aluminum foil
Drain wire: Solid tin-coated copper wire
Jacket: Heavy duty UV resistant PE
Jacket color: Black
Standard & EU Directives Conformance
• Category 3 cable according to IEC 61156-4
• Category 3 cable according to ANSI/TIA-568.2-D
• EU Directive 2011/65/EU (RoHS-2)
Mechanical & Electrical Properties
Pulling force: 50 N/mm2 max
Dynamic bend radius: 8xOD mm min
Static bend radius: 4xOD mm min
Operating temperature: -25 to +60C
Installation temperature: 0 to +50C
DC resistance: 93 Ohm/Km max
Capacitance: 66 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 69% nom.
