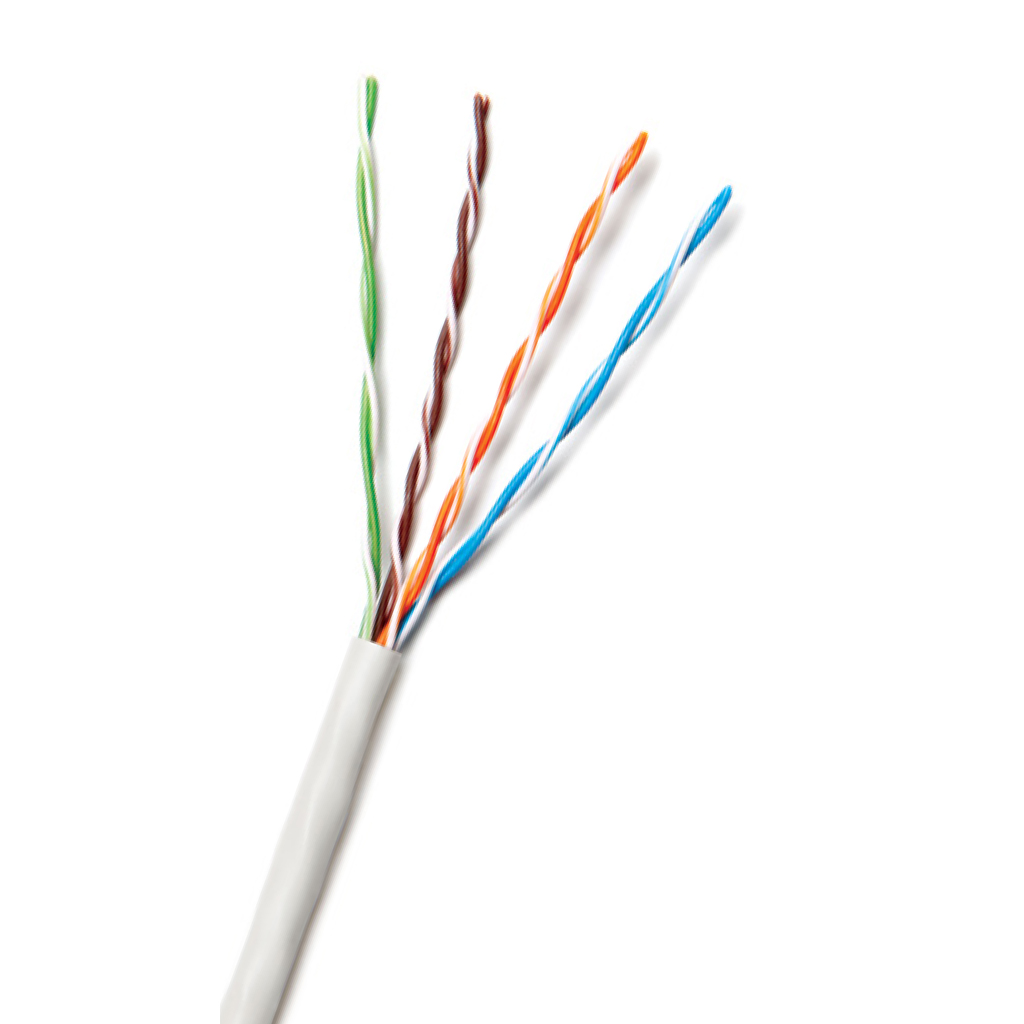

CAT 6 – U/UTP 100 Ohm Horizontal Indoor LAN Cables

4 & 8 pair U/UTP Slim cables
Category: Tags: , , ,

Description

Frequency range: 1-250 MHz
Conductor: 24 AWG Solid bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Shield: None
Jacket: PVC or LS0H

Standard & EU Directives Conformance

• Category 6 cable according to IEC 61156-5
• Category 6 cable according to ANSI/TIA-568.2-D
• 250MHz cable according to EN 50288-6-1
• IEC 60332-1, IEC 60332-3-24 or IEC 60332-3-25 flame tests
• IEC 60754 & IEC 61034 (LS0H cables)
• EU Directive 2011/65/EU (RoHS-2)
• EU Regulation 305/2011 (CPR):


Mechanical & Electrical Properties

Pulling force: 50 N/mm2 max.
Short term bend radius: 8xOD mm
Long term bend radius: 4xOD mm
Operating temperature: -20 to +60C
Installation temperature: 0 to +50C
DC resistance: 90 Ohm/Km max.
Capacitance: 56 max. pF/m @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 69% nom.
