BlueAir ST® Starter Set – macro (SYSTRONIK)

BlueAir ST® set for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.

Description

  • Clearly structured measurement programs, simultaneous display of 4 measured values
  • Measurement of current value
  • Junior macro vane probe (diameter 85 mm)
  • Features Bluetooth® and QR code data transmission to the EuroSoft® mobile app
  • Calculation of air volume after you have entered the channel cross section

The BlueAir-ST® Starter Set – macro perform very accurate measurements of air velocity and therefore ideally suited for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.

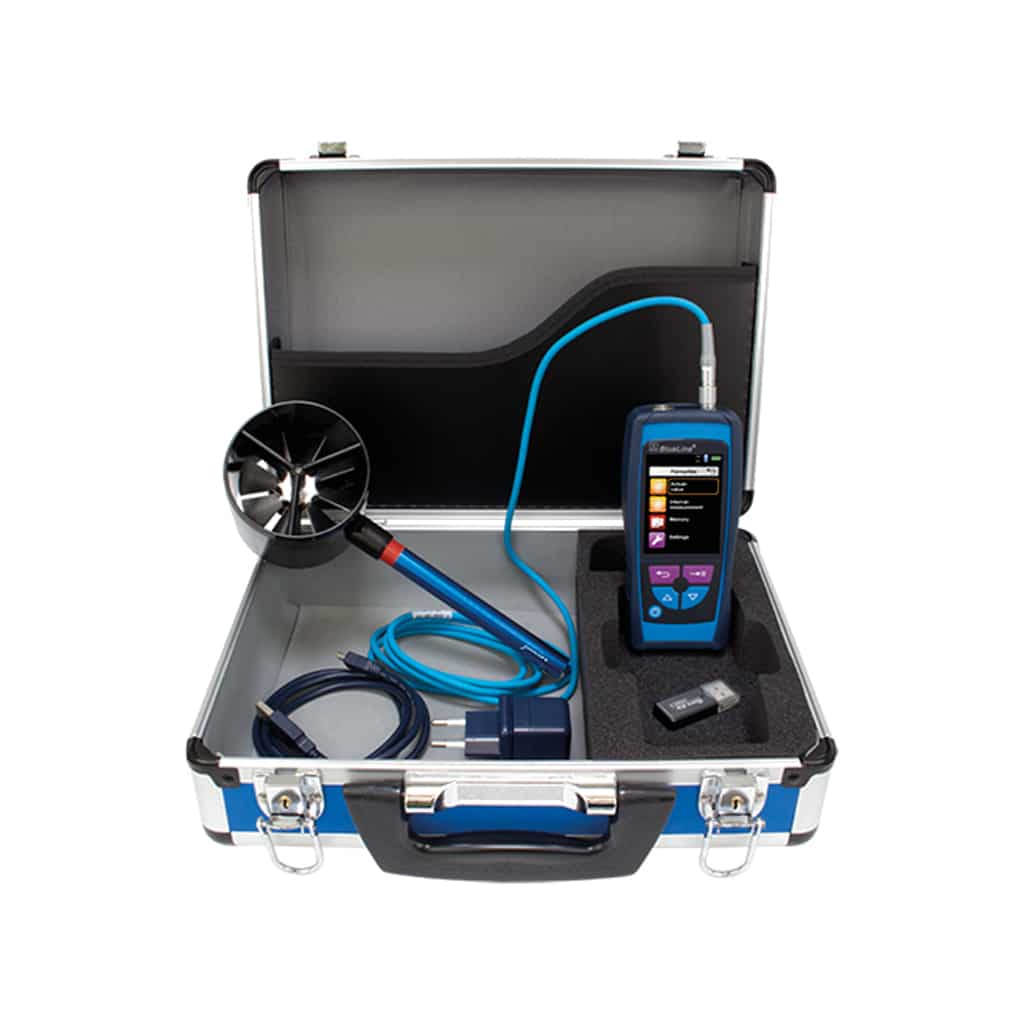

Scope of delivery
M080002016 BlueAir ST® velocity meter
523493 Power supply unit
523506 Charging cable
524320 Rotating vane anemometer Junior macro 20 m/s
511035 Option: datalogger
511035 MicroSD card 4GB with card reader
511001 Case
Starter Set – micro Starter Set – mini Starter Set – macro
Part no. P00023 P00022 P00024
Vane probe Junior micro Junior mini Junior macro
Measuring range 0.6 to 20 m/s 0.4 to 20 m/s 0.3 to 20 m/s
Accuracy ± 2.0 % full scale ± 1.0 % full scale ± 1.0 % full scale
± 5.0 % RDG ± 3.0 % RDG ± 3.0 % RDG
Resolution 0.01 m/s 0.01 m/s 0.01 m/s
Sensor dimensions Ø 11 mm x 15 mm Ø 22 mm x 28 mm Ø 85 mm x 80 mm
Probe length 165 mm 175 mm 235 mm
Cable length 1.5 m 1.5 m 1.5 m
