CAT 6 – U/FTP 100 Ohm RJ45 Consolidation Point Cords

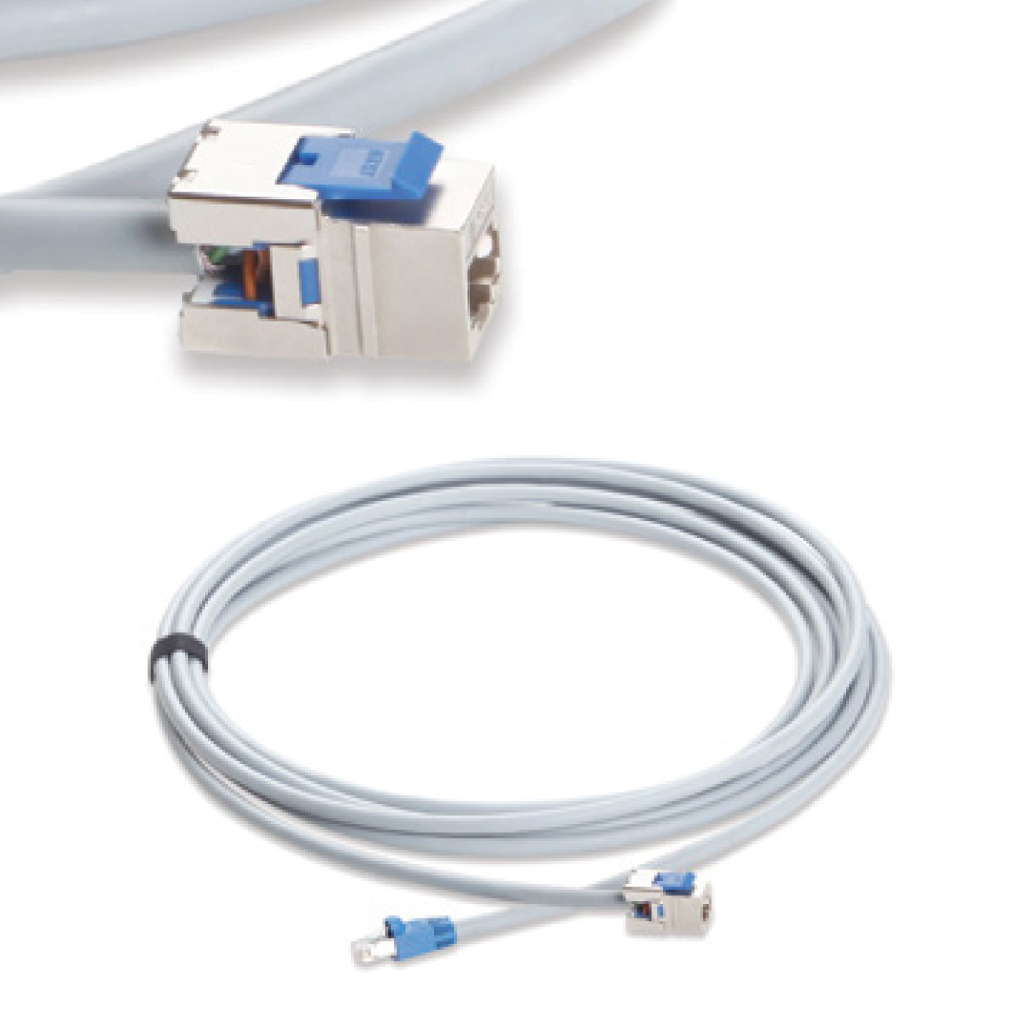

Shielded U/FTP RJ45 consolidation point cords (plug to jack)
Category: Tags: , , ,

Description

(Plug to Jack Extension Cords)
Frequency range: 1-250 MHz
Solid conductor: 23 AWG solid bare copper
Stranded conductor: 26 AWG 7×0.16mm stranded bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Jacket: PVC or LS0H
Shield: Individual pair aluminum foil
Drain wire: Single tin-coated copper stranded wire
Standard jacket color: Gray (other colors available)
Standard boot color: Black (other colors available)
Jack color: Metal
Length: 5-30m (other lengths available)

Standard & EU Directives Conformance

• Category 6 according to ISO/IEC 11801
• Category 6 according to EN 50173
• Category 6 according to ANSI/TIA-568.2-D
• IEC 60332-1 (cable) and UL94 V-0 (plug) flame tests
• EU Directive 2011/65/EU (RoHS-2)

Mechanical & Electrical Properties

Impedance: 100 Ohm nom.
Pin-pair assignment: T568B
Plug contacts: 50µ-Inch Gold plating
Plug housing: FR Polycarbonate
Operating temperature: -20 to +60C
Voltage rating: 72 Vdc max.
Ampacity: 1.0 Ampere max.
Insulation resistance: 500 MegaOhm min. @500 Vdc
