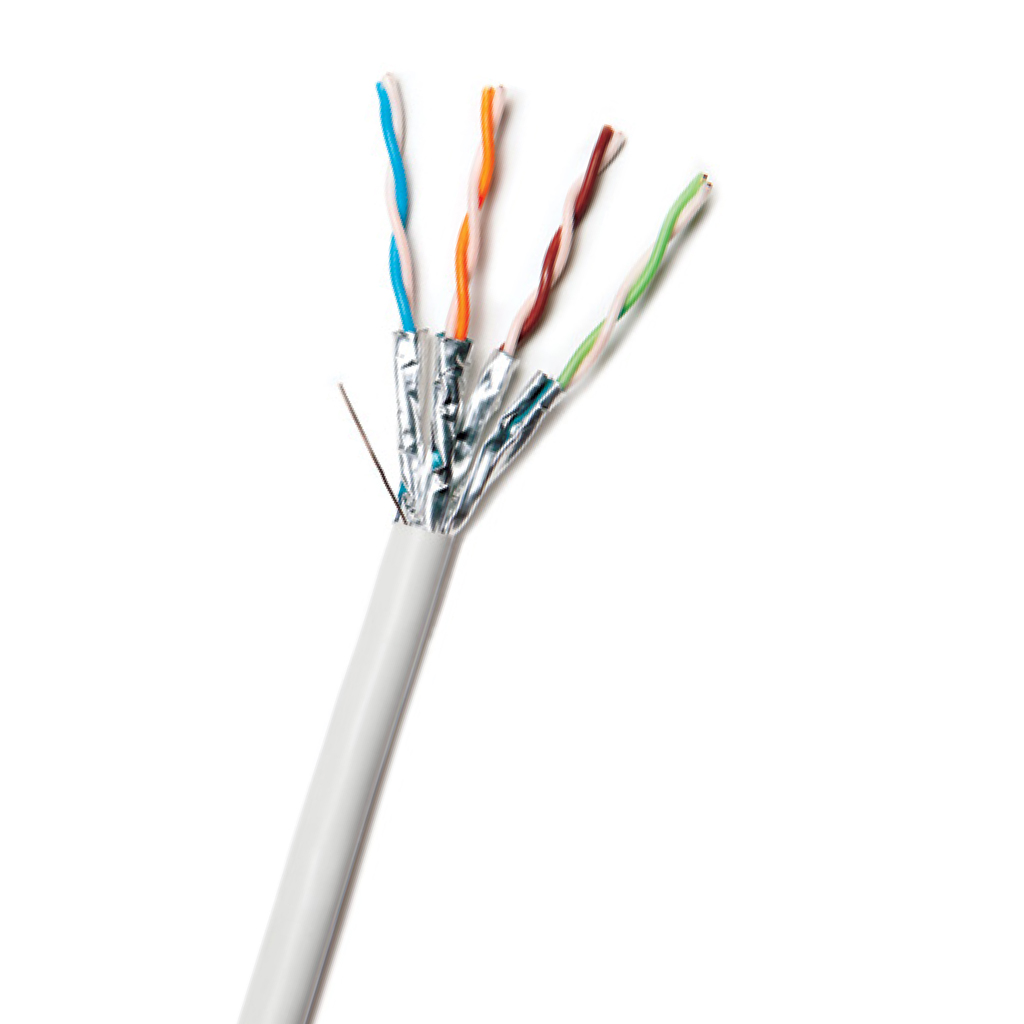

Description
Frequency range: 1-250 MHz
Conductor: 23 AWG Solid bare copper
Insulation: PO
Color code: Modified ANSI/TIA-568.2-D
(solid colors)
Shield: Individual pair aluminum foil
Drain wire: Single tin-coated copper solid wire
Jacket: PVC or LS0H
Standard & EU Directives Conformance
• Category 6 cable according to IEC 61156-5
• Category 6 cable according to ANSI/TIA-568.2-D
• 250MHz cable according to EN 50288-5-1
• IEC 60332-1, IEC 60332-3-24 or IEC 60332-3-25 flame tests
• IEC 60754 & IEC 61034 (LS0H cables)
• EU Directive 2011/65/EU (RoHS-2)
• EU Regulation 305/2011 (CPR)
Mechanical & Electrical Properties
Pulling force: 50 N/mm2 max.
Short term bend radius: 8xOD mm
Long term bend radius: 4xOD mm
Operating temperature: -20 to +60C
Installation temperature: 0 to +50C
DC resistance: 80 Ohm/Km max.
Capacitance: 56 max. pF/m @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 78% nom.
