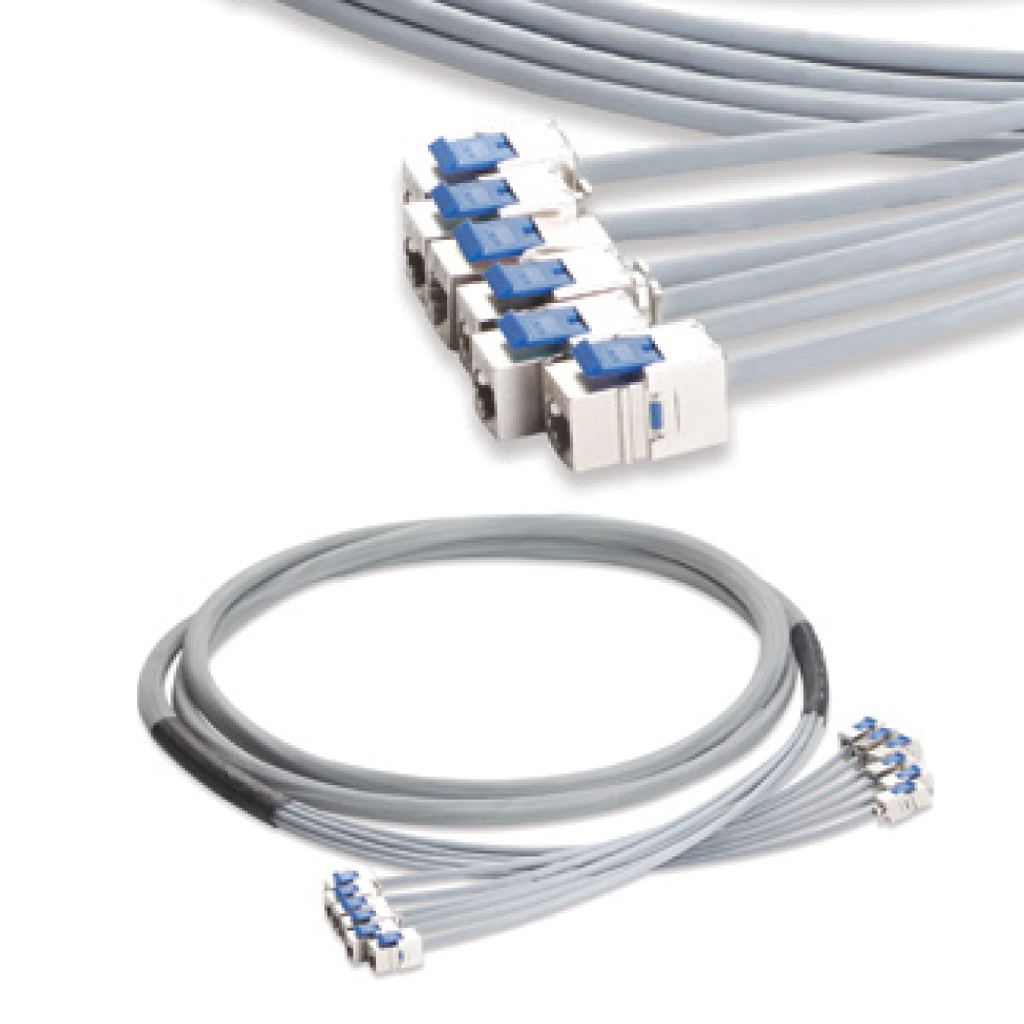

CAT 6 – Shielded 100 Ohm RJ45 Plug & Play Pre-Terminated Bundles

6-Port Shielded U/FTP or S/FTP R45/RJ45 pre-terminated cable bundles
Frequency range: 1-250 MHz
Termination: Shielded CAT6 RJ45 jacks
Conductor: 23 AWG solid bare copper
Insulation: PO
Individual shield: Aluminum foil
Drain wire (U/FTP cable only): Single tin-coated copper solid wire
Overall shield (S/FTP cable only): Tin-coated copper braid
Jacket: PVC or LS0H
Standard jacket color: Gray (other colors available)
Number of 4-pair cables: 6
Bundle jacket: LS0H black polyester braid secured with shrink-tubes
Length: 10-50m (other lengths available)

Description

Standard & EU Directives Conformance

• Category 6 according to ISO/IEC 11801
• Category 6 according to EN 50173
• Category 6 according to ANSI/TIA-568.2-D
• IEC 60332-1 (cable) and UL94 V-0 (construction materials) flame tests
• EU Directive 2011/65/EU (RoHS-2)

Mechanical & Electrical Properties

Impedance: 100 Ohm nom.
Pin-pair assignment: T568B
Jacks contacts: 50µ-Inch Gold plating
Jacks housing: High impact FR compound
Jacks shield: Die-cast metal case
Jacks color: Metal/Blue (other colors available)
Operating temperature: -20 to +60C
Voltage rating: 72 Vdc max.
Ampacity: 1.0 Ampere max.
Insulation resistance: 500 MegaOhm min. @500 Vdc
