9HZ – 320 X 240 PIXELS

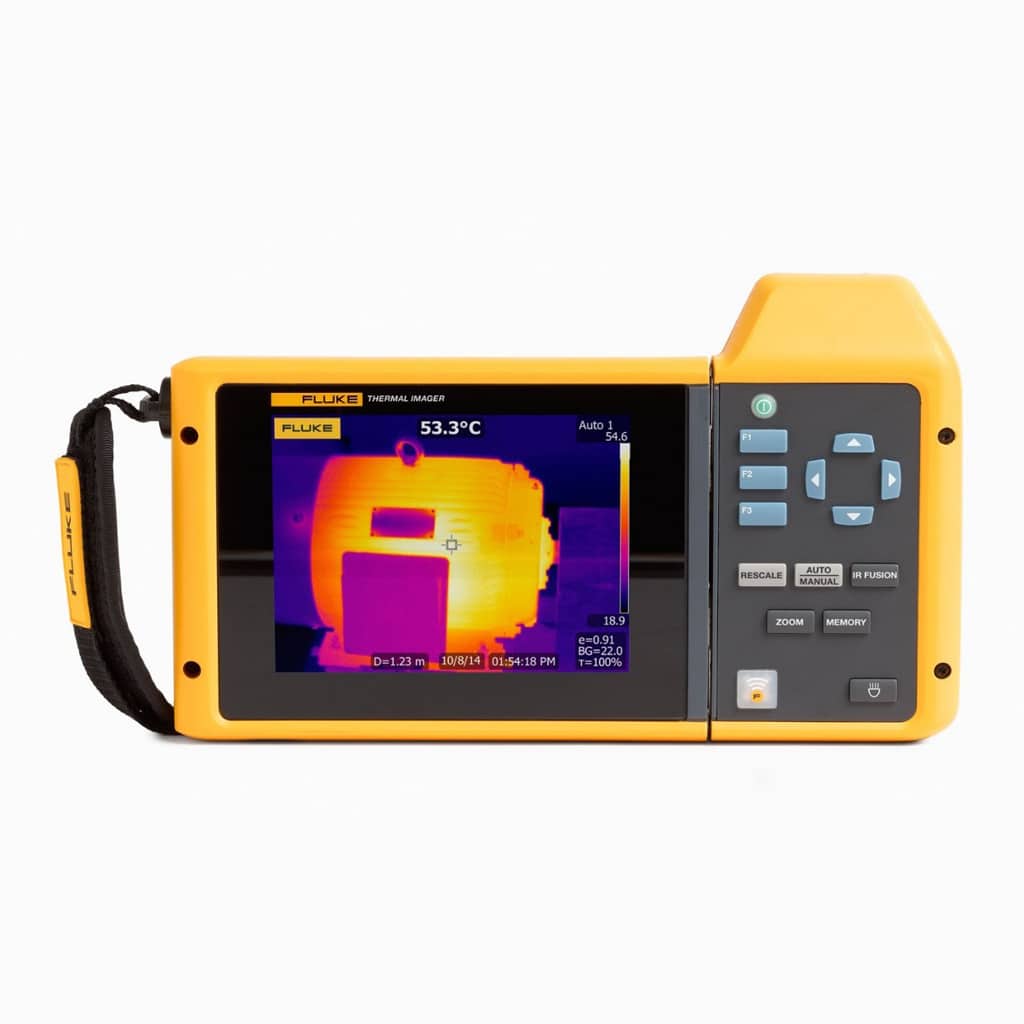

The Fluke TiX500 will help you navigate, capture, and process images faster. Easily navigate over, under and around hard to reach targets with the full 240° rotating screen. Analyze images in the field on the 5.7 inch responsive touchscreen LCD with on-camera analytics. You can save time by editing emissivity, background temp, transmissivity, palettes, color alarms, adjusting IR-Fusion, and enabling/disabling markers all on the camera.
Get in-focus premium image quality at the touch of a button
Instantly get an in-focus image of your target with precision accuracy using Fluke’s exclusive Laser Sharp® Auto Focus technology. The built-in laser distance meter quickly calculates and displays the distance to your designated target with pinpoint accuracy. This helps ensure that you get the correct image and temperature measurements of the exact target you’re inspecting You can turn your 320 x 240 images into 640 x 480 images, that’s 4x the resolution and pixels with Super Resolution (available on-screen and in software). The TiX500 is also compatible with optional field installable 2x and 4x telephoto, wide angle, and 25 micron macro smart lenses for added versatility.
| Key Features | |
| IFOV with standard lens (spatial resolution) | 1.31 mRad |
| Detector resolution | 320 x 240 (76,800 pixels) |
| Field of view | 24 °H x 17 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| IFOV with optional telephoto lens | 0.65 mRad |
| Field of view | 12 °H x 9 °V |
| Minimum focus distance | 45 cm (approx. 18 in) |
| IFOV with optional wide-angle lens | 2.62 mRad |
| Field of view | 46 °H x 34 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| Super Resolution | In software |
| Image sharpening | – |
| Laser Sharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Streaming video (remote display) | Via USB or WIFI |
| Touchscreen display (capacitive) | 14.4 cm (5.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WIFI to LAN (where available) |
| Fluke Connect® app compatible | Yes (where available) |
| Fluke Connect® tool compatible | Yes (where available). Connects wirelessly to select Fluke Connect™ enabled tools. Five simultaneous connections supported. |
| IR-Fusion® technology | Yes |
| Auto Blend™ mode | Yes |
| Picture-In-Picture (PIP) | Yes |
| Continuous Auto Blend™ | – |
| Rugged, ergonomic design for one-handed use | Rotatable (articulating lens) 240 degrees |
| Thermal sensitivity (NETD) | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| Filter mode (NETD improvement) | – |
| Level and span | Smooth auto and manual scaling |
| Touchscreen adjustable level / span | Yes. Span and level can be easy and quickly set by simply touching the screen. |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Digital zoom | 4x |
| Data Storage and Image Capture | |
| Extensive memory options | Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection |
| Post-capture image editing (on camera) | Yes. Conduct on camera analysis for in-field results. |
| Advanced text annotation | Yes. Including standard shortcuts as well as user programmable options. |
| File formats | Non-radiometric (.bmp) or (.jpeg) or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Memory review | Thumbnail view navigation and review selection |
| Software | SmartView® full analysis and reporting desktop software. In the field use the Fluke Connect® app on your smartphone. |
| Export file formats with SmartView® software | BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes™ | Yes |
| Text annotation | Yes |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG – encoded .AVI) and fully radiometric (.IS3) |
| Remote control and operation (for special and advanced applications) | – |
| Auto capture (temperature and interval) | Yes |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | Three hours continuous use per battery pack |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Temperature Measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +650 °C (-4 °F to +1202 °F) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Color Palettes | |
| Standard palettes | 8: Iron bow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Iron bow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General Specifications | |
| Color alarms (temperature alarms) | High-temperature and low-temperature |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp |
| Safety | IEC 61010-1: Overvoltage Category II, Pollution degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM Environment CISPR11, Group 1, Class A |
| Australian RCM | IEC/61326-1 |
| US FCC | CFR 47, Part 15 Sub part B |
| Vibration | 0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 1 meter (3.4 feet) drop with standard lens |
| Size (H x W x L) | 27.3 cm x 15.9 cm x 9.7 cm (10.8 in x 6.3 in x 3.8 in) |
| Weight (battery included) | 1.5 kg (3.3 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | English, French, German, Italian, Spanish |
