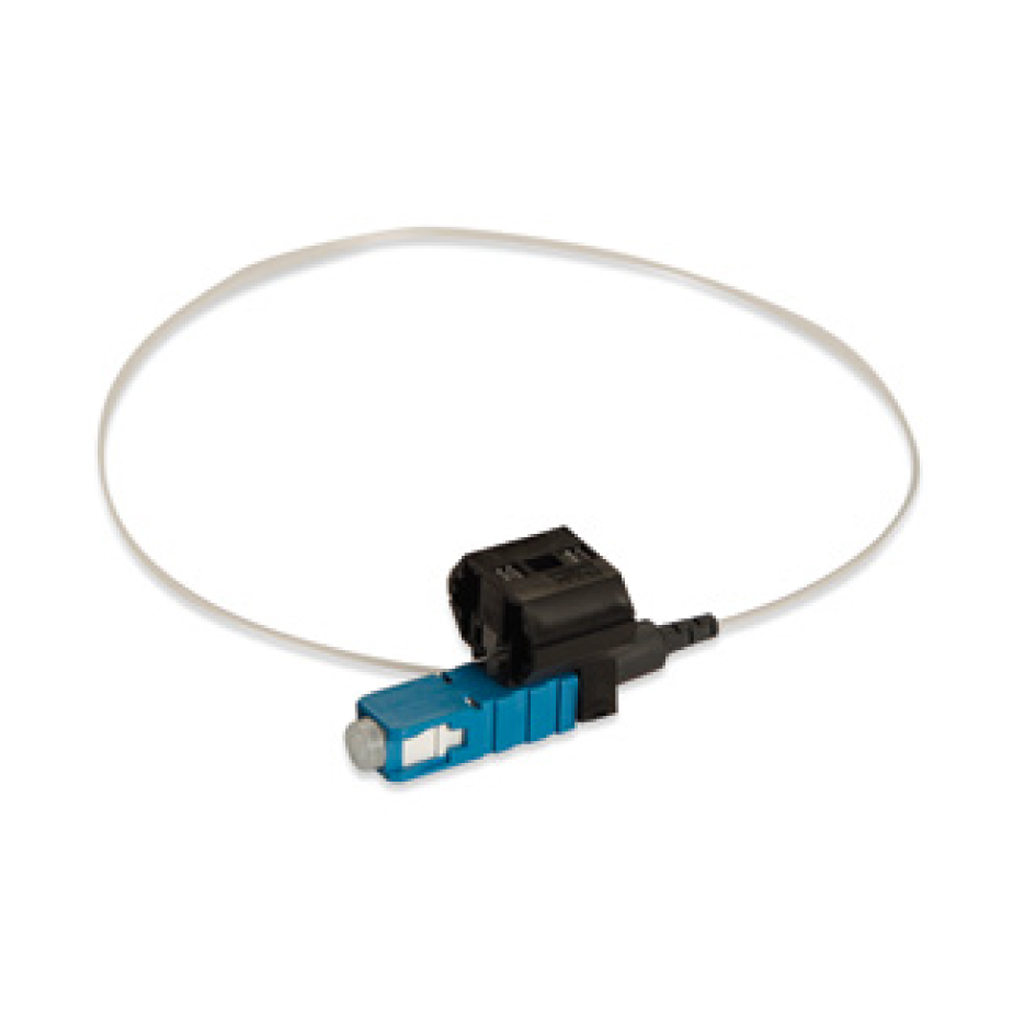

Fiber Optic Rapid Connectors for 250µ or 900µ Fibers (AT&T)

Pre-terminated & pre-polished connectors for field termination of fibers (AT&T)

Description

Compatible fiber coating diameters: 250µm and 900µm
Available fiber polishing methods: UPC or APC
Insertion loss: SM UPC, SM APC, MM
Max./Typical dB: 0.5/0.2, 0.6/0.3, 0.4/0.1
Return loss: SM UPC, SM APC, SM APC
Min./Typical dB: 40/55, 50/60, 22/35
Durability: 0.2dB max. change after 1000 mating cycles
Temperature range: -40 to +75C
Connector Ferrule type: Ceramic

Standard & EU Directives Conformance

• Relevant sections of ANSI/TIA/EIA-604 (FOCIS)
• Relevant sections of IEC 60874
• Relevant sections of IEC 61753
• Relevant sections of IEC 61754
• EU Directive 2011/65/EU (RoHS-2)
