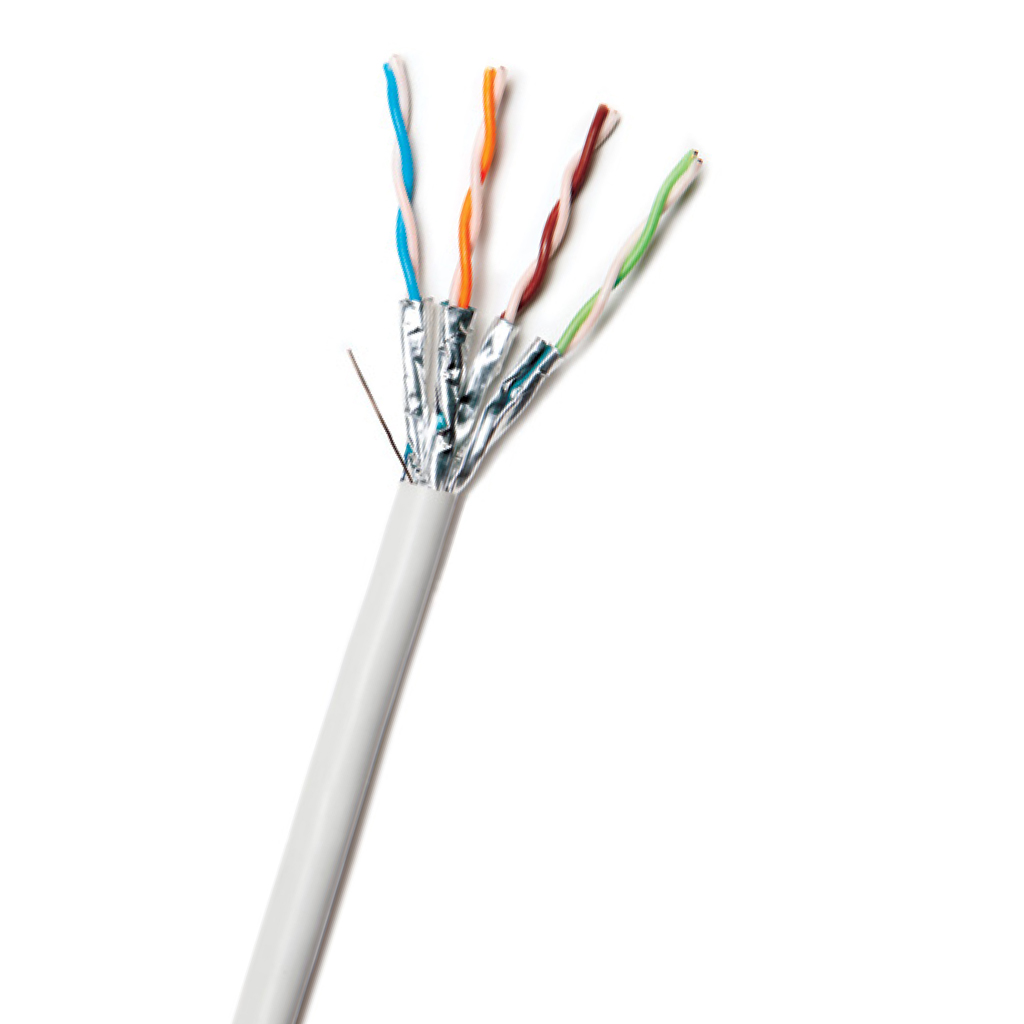

Description
Frequency range: 1-500 MHz
Conductor: 26 AWG 7×0.16mm stranded bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Shield: Individual pair aluminum foil
Drain wire: Single tin-coated copper stranded wire
Jacket: PVC or LS0H
Standard & EU Directives Conformance
• Category 6A work area cable according to IEC 61156-6
• Category 6A cord cable according to ANSI/TIA-568.2-D
• 500MHz work area cable according to EN 50288-11-1
• IEC 60332-1 flame test
• IEC 60754 & IEC 61034 (LS0H cables)
• EU Directive 2011/65/EU (RoHS-2)
Mechanical & Electrical Properties
Pulling force: 50 N/mm2 max.
Short term bend radius: 8xOD mm
Long term bend radius: 4xOD mm
Operating temperature: -20 to +60C
Installation temperature: 0 to +50C
DC resistance: 145 Ohm/Km max.
Capacitance: 56 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 80% nom.
