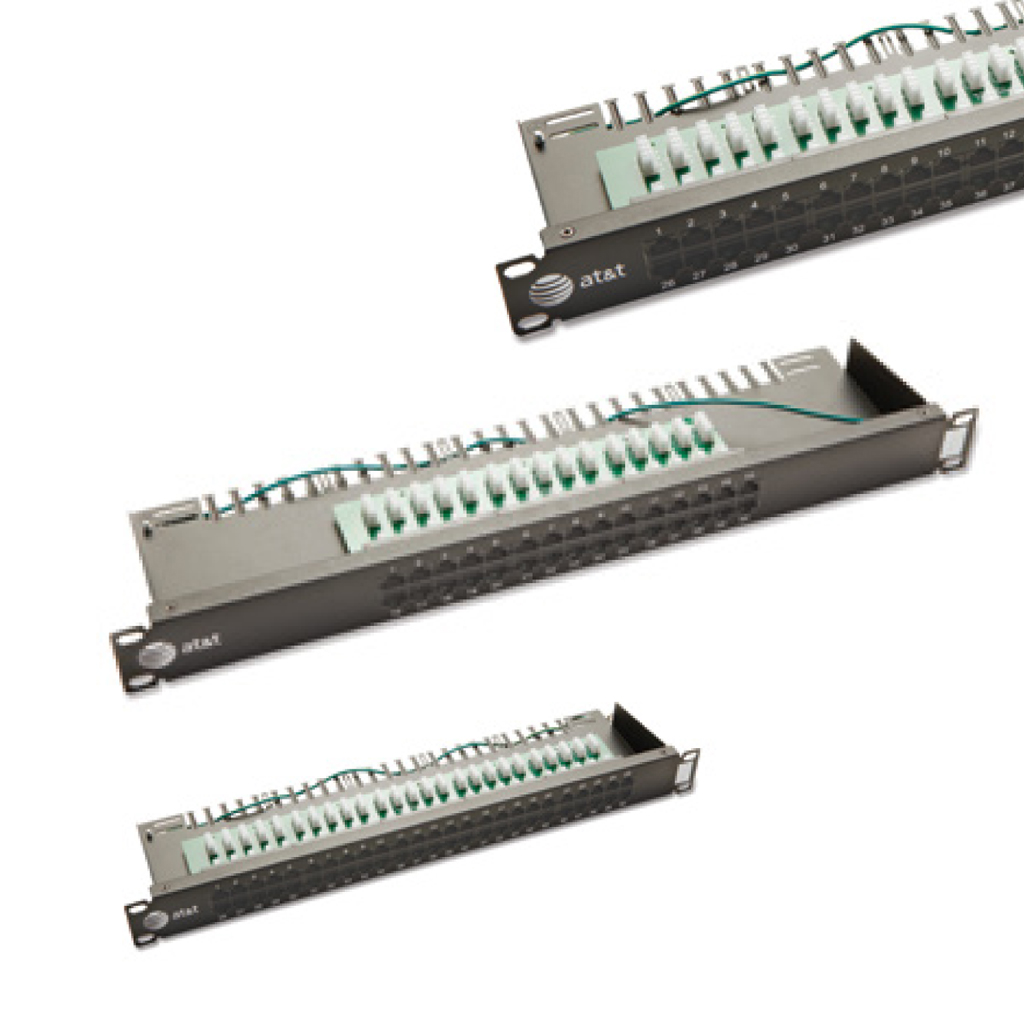

CAT 3 – Unshielded RJ45 Patch Panels

30 or 50 port unshielded panels
Frequency range: 1-16 MHz
Compatible conductors: 23-26 AWG Solid or stranded
Wiring: 2 pairs per port: 3-6 & 4-5
Blocks: IDC 110 or LSA-Plus
Shield: None
Housing: High impact FR compound
Frame: Galvanized steel


Standard & EU Directives Conformance

• Category 3 connecting hardware according to ANSI/TIA-568.2-D
• UL94 V-0 flame tests
• EU Directive 2011/65/EU (RoHS-2)


Mechanical & Electrical Properties

Construction: 5 modules of fixed 6-ports or 10-ports PCB units.
Port contacts: 50µ-Inch gold plating
Insertion/Extraction durability: 750 cycles Level A durability
Cable re-termination: 20 terminations
Operating temperature: -20 to +60C at 5-95% RH (non condensing)
Contact resistance: 20 mOhm max.
DC resistance: 0.2 Ohm max.
Voltage rating: 72 Vdc max.
Insulation resistance: 10 MegaOhm min. @500 Vdc
