Description
- Clearly structured measurement programs, simultaneous display of 4 measured values
- Measurement of current value
- Junior mini vane probe (diameter 22 mm)
- Features Bluetooth® and QR code data transmission to the EuroSoft® mobile app
- Calculation of air volume after you have entered the channel cross section

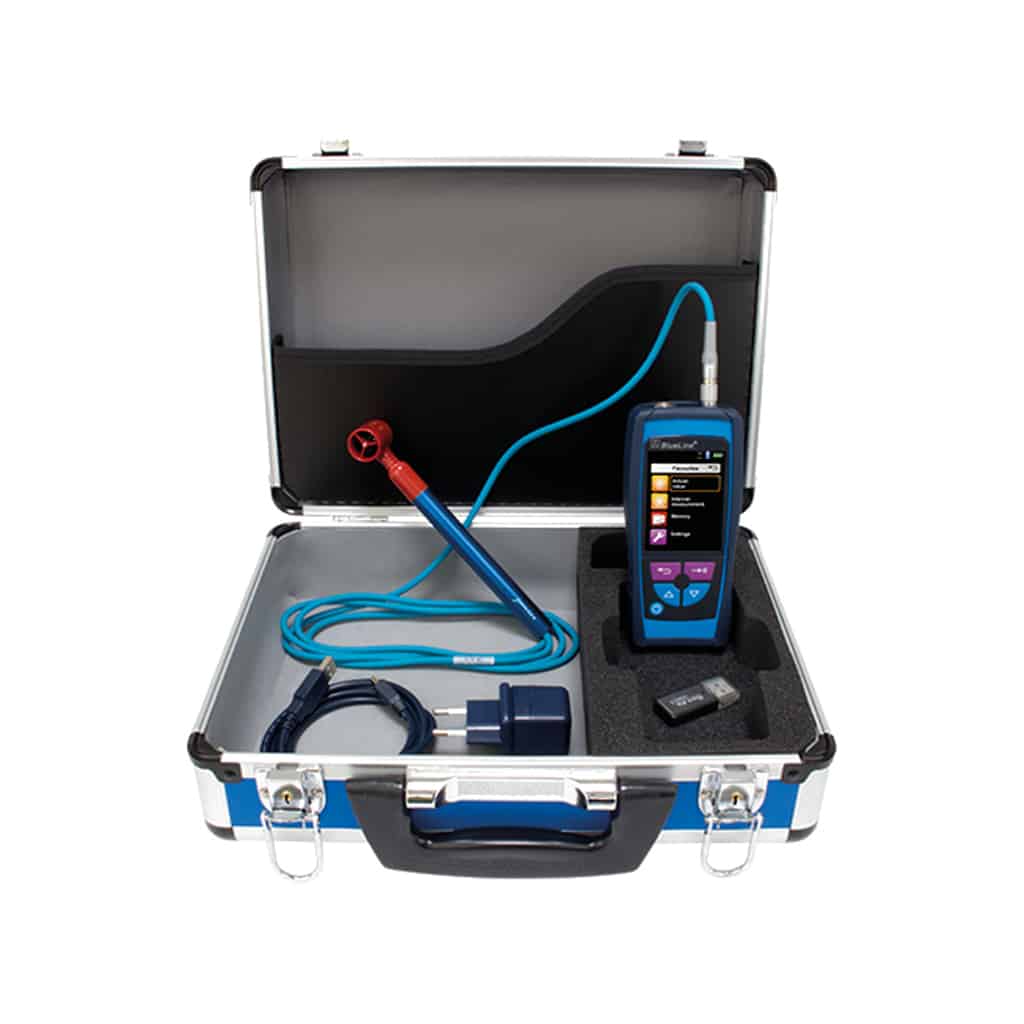

The BlueAir-ST® Starter Set – mini perform very accurate measurements of air velocity and therefore ideally suited for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.
| Scope of delivery | |
| M080002016 | BlueAir-ST Velocity Meter |
| 523493 | Power supply unit |
| 523506 | Charging cable |
| 524319 | Rotating vane anemometer Junior mini 20 m/s |
| 511035 | Option: datalogger |
| 511035 | microSD Card 4GB with card reader |
| 511001 | Case |
| Starter Set – micro | Starter Set – mini | Starter Set – macro | |
| Part no. | P00023 | P00022 | P00024 |
| Vane probe | Junior micro | Junior mini | Junior macro |
| Measuring range | 0.6 to 20 m/s | 0.4 to 20 m/s | 0.3 to 20 m/s |
| Accuracy | ± 2.0 % full scale | ± 1.0 % full scale | ± 1.0 % full scale |
| ± 5.0 % RDG | ± 3.0 % RDG | ± 3.0 % RDG | |
| Resolution | 0.01 m/s | 0.01 m/s | 0.01 m/s |
| Sensor dimensions | Ø 11 mm x 15 mm | Ø 22 mm x 28 mm | Ø 85 mm x 80 mm |
| Probe length | 165 mm | 175 mm | 235 mm |
| Cable length | 1.5 m | 1.5 m | 1.5 m |
