CAT 6 - Unshielded 100 Ohm RJ45 Plug & Play Pre-Terminated Cassettes

CAT 6 – Unshielded 100 Ohm RJ45 Plug & Play Pre-Terminated Cassettes

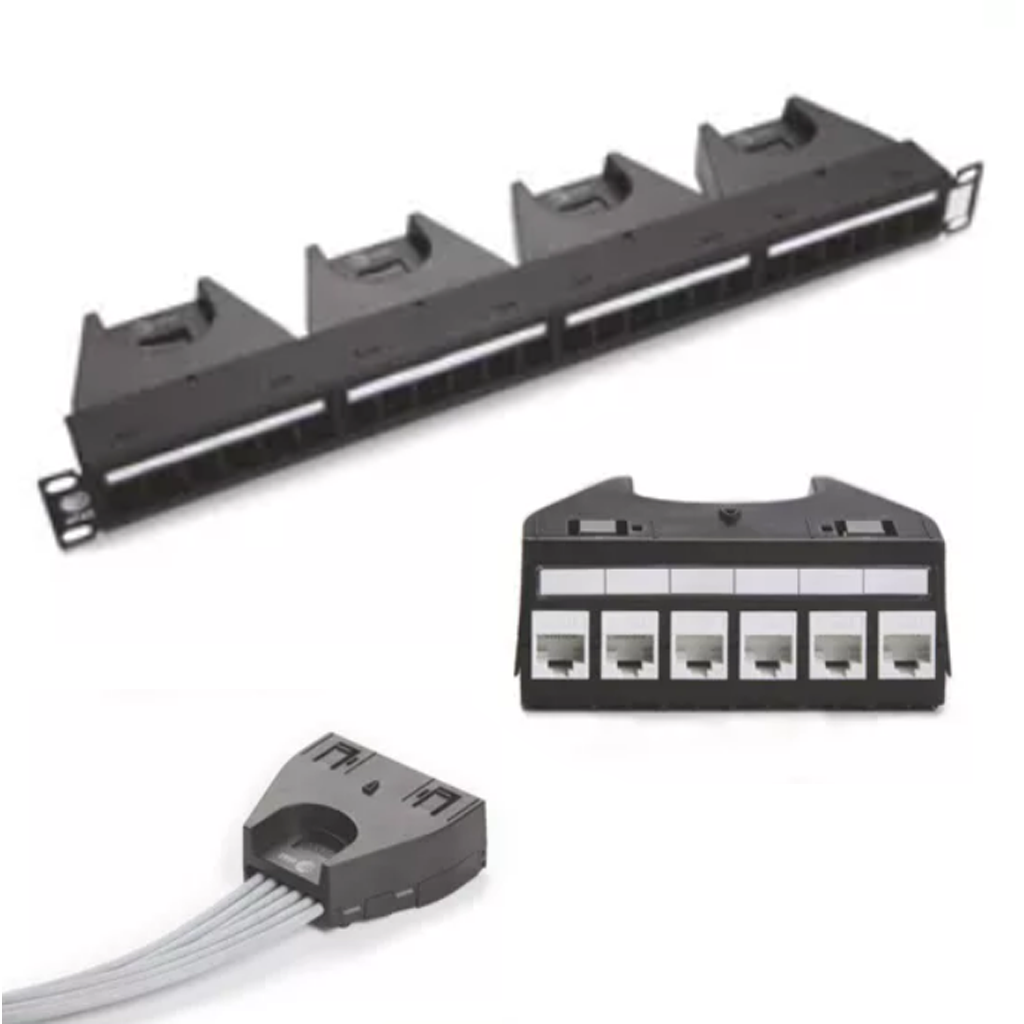

6-Port unshielded RJ45 pre-terminated cassettes in 24-Port panel
Frequency range: 1-250 MHz
Cassette contents: 6 unshielded CAT6 RJ45 jacks
Panel formation: 4 cassettes in 1U
Panel and cassette color: Black (other colors available)
Cable bundles
Conductor: 23 AWG solid bare copper
Insulation: PO
Jacket: LS0H
Standard jacket color: Gray (other colors available)
Number of 4-pair cables: 6 in each cassette
Bundle jacket: LS0H black polyester braid secured with shrink-tubes
Length: 5-50m (other lengths available)
Categories: , Tags: , , ,

Description

Standard & EU Directives Conformance

• Category 6 according to ISO/IEC 11801
• Category 6 according to EN 50173
• Category 6 according to ANSI/TIA-568.2-D
• IEC 60332-1 (cable) and UL94 V-0 (construction materials)
flame tests
• IEC 60754 & IEC 61034
• EU Directive 2011/65/EU (RoHS-2)

Mechanical & Electrical Properties

Impedance: 100 Ohm nom.
Pin-pair assignment: T568B
Jacks contacts: 50µ-Inch Gold plating
Jacks housing: High impact FR compound
Operating temperature: -20 to +60C
Voltage rating: 72 Vdc max.
Ampacity: 1.0 Ampere max.
Insulation resistance: 500 MegaOhm min. @500 Vdc
