Description

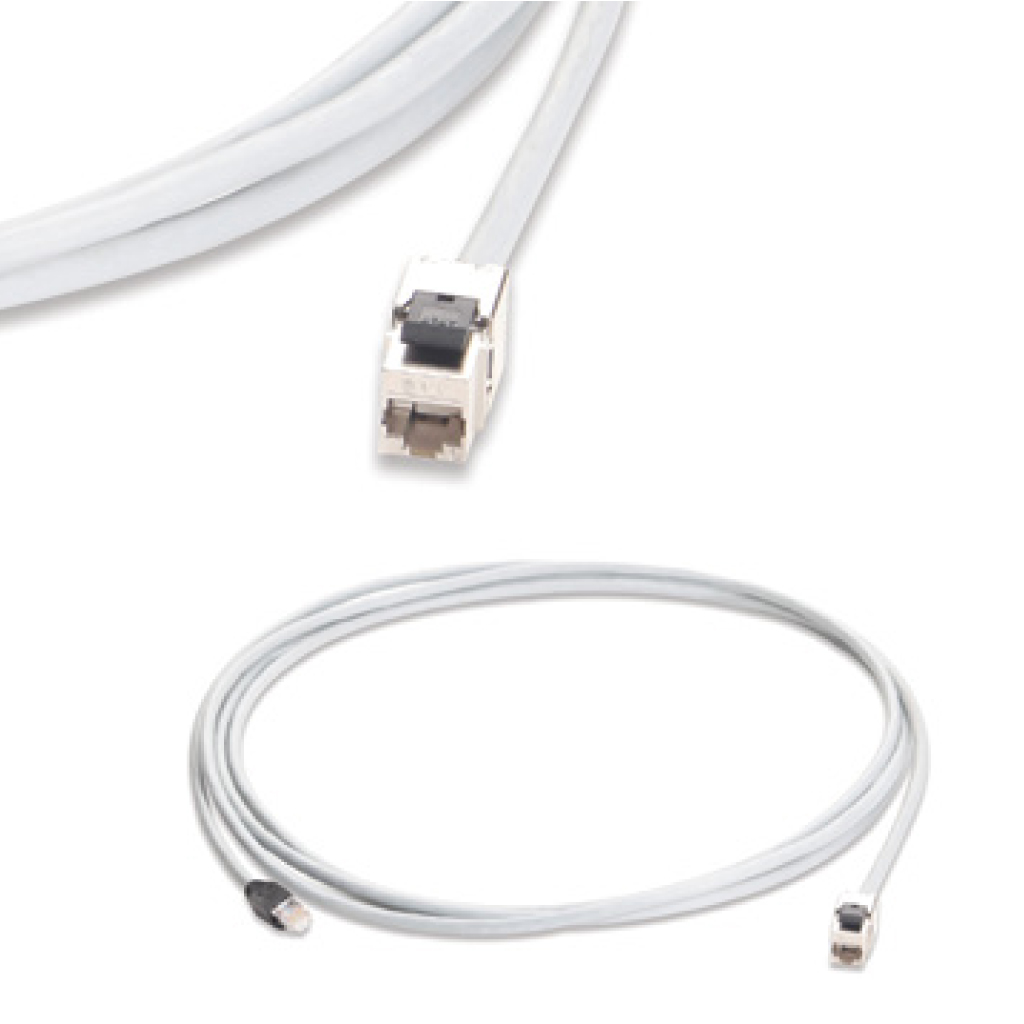

(Plug to Jack Extension Cord)
Frequency range: 1-500 MHz
Solid conductor: 23 AWG solid bare copper
Stranded conductor: 26 AWG 7×0.16mm stranded bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Jacket: PVC or LS0H
Individual Shield: Aluminum foil
Overall shield: Tin-coated copper braid
Standard jacket color: Gray (other colors available)
Standard boot color: Black (other colors available)
Jack color: Metal
Length: 5-30m (other lengths available)
Standard & EU Directives Conformance
• Category 6A according to ISO/IEC 11801
• Category 6A according to EN 50173
• Category 6A according to ANSI/TIA-568.2-D
• IEC 60332-1 (cable) and UL94 V-0 flame test (plug)
• EU Directive 2011/65/EU (RoHS-2)
Mechanical & Electrical Properties
Impedance: 100 Ohm nom.
Pin-pair assignment: T568B
Plug contacts: 50µ-Inch Gold plating
Plug housing: FR Polycarbonate
Operating temperature: -20 to +60C
Voltage rating: 72 Vdc max.
Ampacity: 1.0 Ampere max.
Insulation resistance: 500 MegaOhm min. @500 Vdc
