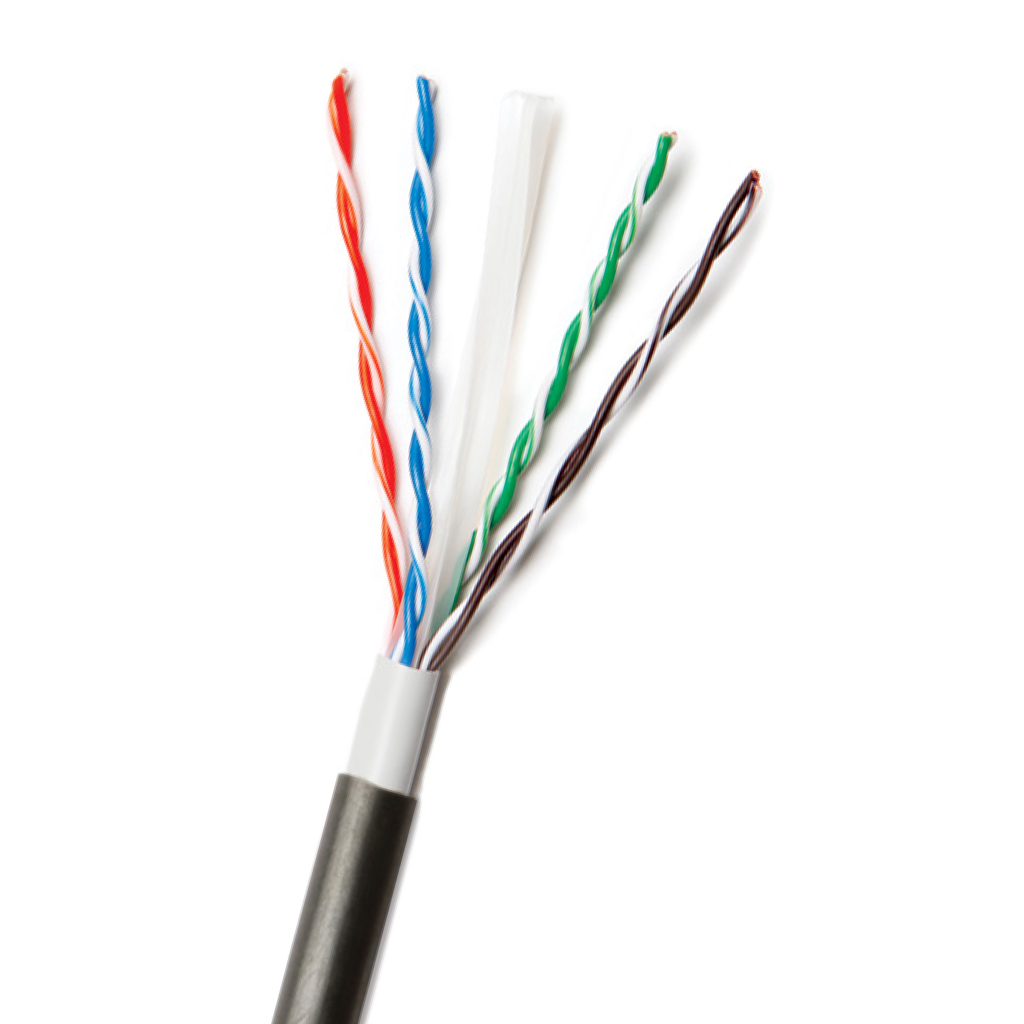

Description
Frequency range: 1-250 MHz
Conductor: 23 AWG Solid bare copper
Insulation: PO
Color code: ANSI/TIA-568.2-D
Water blocking: None
Shield: None
Inner jacket: PVC or LS0H
Outer jacket – Option A: 1.8 mm UV resistant PVC compound for outdoor use
Outer jacket – Option B: 1.0 mm UV resistant MDPE for outdoor use
Outer jacket color: Black
Standard & EU Directives Conformance
• Category 6 cable according to IEC 61156-5
• Category 6 cable according to ANSI/TIA-568.2-D
• 250MHz cable according to EN 50288-6-1
• EU Directive 2011/65/EU (RoHS-2)
Mechanical & Electrical Properties
Pulling force: 50 N/mm2 max.
Dynamic bend radius: 8xOD mm min
Static bend radius: 4xOD mm min
Operating temperature: -25 to +60C
Installation temperature: 0 to +50C
DC resistance: 80 Ohm/Km max.
Capacitance: 56 pF/m max. @ 1KHz
Voltage rating: 72 Vdc max.
Velocity of propagation (NVP): 69% nom
